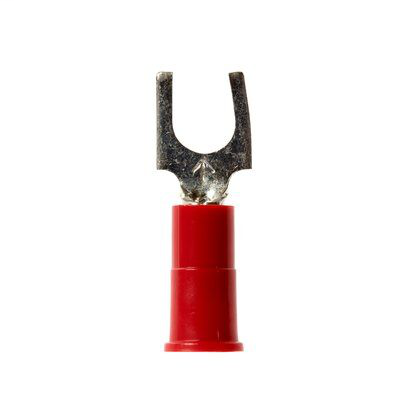

3M BFV18-6Q 25/Bag Vinyl Block Fork Highlandbag

Features

• Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• 3M™ Highland™ Color-Coded Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The terminal has a vinyl-insulated, butted-seam barrel and withstands temperatures of -40 to 221 degrees F (-40 to 105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Suitable for use in a terminal block
• 3M™ Highland™ Block Fork Terminal is color-coded for quick and easy identification of the wire size required. It has a butted-seam barrel that is covered by a funnel-designed, rigid-molded, polyvinyl chloride sleeve to guide the wire into position while providing electrical contacts and mechanical stress relief at the point of insulation. The abrasion-resistant, flared, vinyl-sleeve insulation ensures easy crimping. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
• Stud size #6
• Accommodates wire sizes 22 to 18 AWG
• Electrolytic copper construction offers good conductivity
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 25/bag

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611602550
• Manufacturing Origin: USA
• Brand: Highland™
• Connection Width (Imperial): 0.138 in
• Connection Width (Metric): 3.5 mm
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Overall Length (Imperial): 0.85 in
• Overall Length (Metric): 21.59 mm
• Overall Width (Imperial): 0.25 in
• Overall Width (Metric): 6.35 mm
• Terminal Type: Fork
