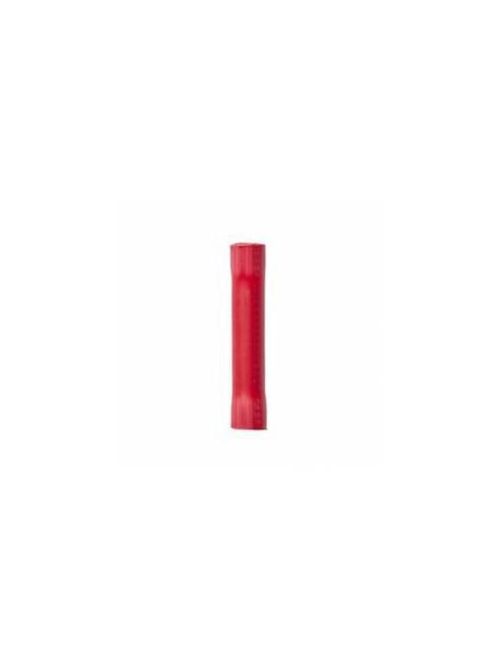

3M BSV18Q 25/Bag Vinyl Butt Connector Highland Bag

Features

• Red vinyl-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
• Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
• Built-in wire stop for correct positioning
• Accommodates wire sizes 22 to 18 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• 1000/case
• 25/bag

Specifications

• Barrel Inside Diameter: 0.145 Inch
• Barrel Length (Imperial): 0.25 Inch
• Barrel Length (Metric): 6.35 mm
• Barrel Style: Butted Seam
• Body Material: Copper Alloy
• Conductor Size: 22 - 18 AWG
• Conductor Sizes: 22 - 18 AWG
• Connector Type: Butt
• CSA File Number: LR22190
• Insulated: Yes
• Insulation Color: Red
• Insulation Material: Vinyl
• Material: Plastic
• Maximum Conductor Size: 22 AWG
• Maximum Insulation Outer Diameter (Metric): 3.7 mm
• Maximum Insulation Outside Diameter: 0.145 in
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
• Maximum Recommended Voltage Rating: 600 V
• Maximum Voltage Rating: 600 to 1000 V
• Maximum Wire Gauge: 18 AWG
• Minimum Conductor Size: 18 AWG
• Minimum Wire Gauge: 22 AWG
• Operating Temperature Range (Celsius): -40 °C to 105 °C
• Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
• Overall Length (Imperial): 1 in
• Overall Length (Metric): 25.4 mm
• Product Key: HIGH HIGHLAND BAGGED TERMINALS FKD
• RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
• Terminal Material: Tin-Plated Electrolytic Copper
• Terminal Style: Standard
• Terminal Type: Butt Connectors
• UL File Number: E23438
