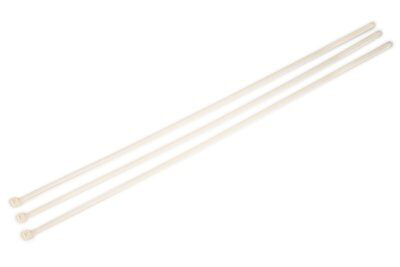

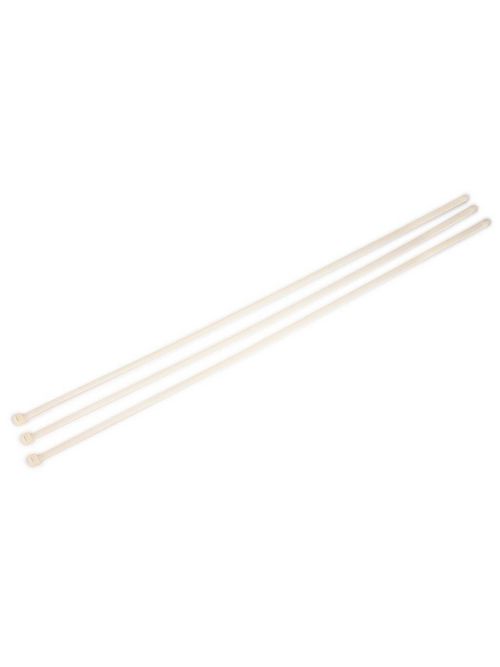

3M CT36NT175-L 50/Bag 36 Inch Natural 175 lb Cable Tie
$0.68/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT36NT175-L
North Coast Part # 885994

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Curved tip allows for faster threading and installation
  • 3M™ Standard Nylon Cable Ties are made with high-quality nylon 6/6 and designed to secure wire bundles and harness components quickly, without slipping. The curved tip allows for faster threading and installation, and they feature a self-locking head.
  • Made in the USA
  • 3M™ Standard Nylon Cable Ties are available in several tensile strengths ranging from 18 lb. to 175 lb. and multiple lengths ranging from 4 inches to 48 inches to cover your needs. They are offered in natural and red for indoor use and UV weather-resistant black for indoor and outdoor use. UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces. Made in the USA.
  • UL Listed 62275 Type 21 or 21S and Plenum Rated AH-2 for use in air handling spaces
  • UL Listed, RoHS 2011/65/EU Compliant and Plenum-rated

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611469802
  • Agency Approvals: UL || UL Listed 62275 Type 21, UL Listed 181B-C
  • Approximate Length: 36
  • Brand: 3M™
  • Cable Length (Imperial): 36 in
  • Cable Length (Metric): 914.4 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Length: 914 mm
  • Color Family: Beige
  • Flammability Rating: UL 94 V-2
  • Manufacturing Origin: USA
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 11 Inch
  • Maximum Bundle Diameter (Metric): 279 mm
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Mil Spec: MS3367-12-9
  • Minimum Bundle Diameter (Metric): 8.1 mm
  • Minimum Installation Temperature (Celsius): 0 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): 32 Degree Fahrenheit
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Minimum Order Quantity: 50
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): 0 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): 32 °F to 185 °F
  • Overall Length (Imperial): 36 in
  • Overall Length (Metric): 914 mm
  • Overall Width (Imperial): 0.335 in
  • Overall Width (Metric): 8.5 mm
  • Package Quantity: 50
  • Plenum Rated: Yes
  • Solution for: Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul || Wireless Network: Infrastructure Accessories
  • Tensile Strength (Imperial): 175 lbs
  • Tensile Strength (Metric): 79.38 kg
  • Type: Standard
  • UV Resistant: No

Overview

UPC 05112859321
GTiN 00051128593219
Length 36 in
Width 0.335 in
Color Beige
Type Heavy Duty (175 lb)
Thickness 0.087 Inch
Material Nylon
Applications Heavy Duty
Family Brand Name 3M
Tensile Strength Heavy Duty (175 pound)
Bundle Diameter 11 in.
Max Operating Temperature 185 degrees F
Overall Length 36 in
