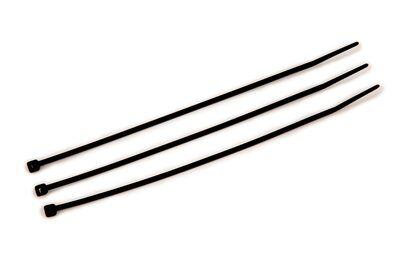

3M CT6BK40-C 100/Bag 6 Inch Black 40 lb Cable Tie
$0.09/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # CT6BK40-C
North Coast Part # 818897

Features

  • Secure wire bundles and harness components quickly, without slipping
  • Can be quickly mounted to walls and structures with screws, bolts or rivets for added security
  • 3M™ Screw Mount Cable Ties allow controlled positioning of cables. The easy-to-use ties are made with high-quality 6/6 nylon and can be quickly mounted to walls and structures with screws, bolts or rivets for added security.
  • 3M™ Screw Mount Cable Ties are available in 8" and 15" lengths and 50 lb. and 120 lb. tensile strengths. They are offered in natural for indoor use and UV weather-resistant black for indoor and outdoor use (50 lb. only). UL Listed 62275 Type 21 and Plenum Rated AH-2 for use in air handling spaces. Made in the USA.
  • Made in the USA
  • UL Listed 62275 Type 21 and Plenum Rated AH-2 for use in air handling spaces
  • UL Listed, RoHS 2011/65/EU Compliant and Plenum-rated

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611469430
  • Agency Approvals: UL || UL Listed 62275 Type 21
  • Approximate Length: 6
  • Brand: 3M™
  • Cable Length (Imperial): 6 in
  • Cable Length (Metric): 147.32 mm
  • Cable Management Products: Cable Ties
  • Cable Tie Length: 226 mm
  • Color Family: Black
  • Flammability Rating: UL 94 V-2
  • Manufacturing Origin: USA
  • Material: Nylon 6/6
  • Maximum Bundle Diameter: 1.25 Inch
  • Maximum Bundle Diameter (Metric): 51 mm
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature: 85 Degree Celsius
  • Maximum Operating Temperature (Celsius): 85 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Mil Spec: MS3367-5-0
  • Minimum Bundle Diameter (Metric): 1.6 mm
  • Minimum Installation Temperature (Celsius): -20 Degree Celsius
  • Minimum Installation Temperature (Fahrenheit): -4 Degree Fahrenheit
  • Minimum Operating Temperature (Fahrenheit): -40 Degree Fahrenheit
  • Operating Temperature (Celsius): 85 Degree Celsius
  • Operating Temperature (Fahrenheit): 185 Degree Fahrenheit
  • Operating Temperature Range (Celsius): -40 °C to 85 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 185 °F
  • Overall Length (Imperial): 5.8 in
  • Overall Length (Metric): 147 mm
  • Overall Width (Imperial): 0.142 in
  • Overall Width (Metric): 3.6 mm
  • Package Quantity: 100
  • Plenum Rated: Yes
  • Product Color: Black
  • Solution for: Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul || Wireless Network: Infrastructure Accessories
  • Tensile Strength (Imperial): 40 lbs
  • Tensile Strength (Metric): 18.14 kg
  • Type: Standard
  • UV Resistant: Yes

Overview

UPC 05112859284
GTiN 00051128592847
Length 6 in
Width 0.142 in
Color Black
Thickness 1.3 mm
Material Polyamide
Family Brand Name 3M
Max Operating Temperature 185 degrees F
Cable Length 6 in
Temperature Rating -40 to 85 C
Overall Length 5.8 in
Standard Packaging Qty 100/Pack
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Tensile Strength 40 lb
Bundle Diameter 51 mm
