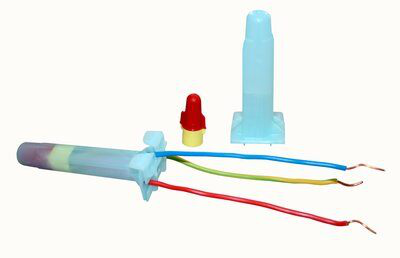

3M DBR/Y-6 BULK 100/Box Red/Yellow Direct Bury Splice Kit
$2.83/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # DBR/Y-6 BULK
North Coast Part # 1271313

Features

  • UL Listed for 600 volts in direct bury applications
  • Twist-on type for quick connection
  • 3M™ Direct Bury Splice Kits combine the quick, reliable connection of a 3M™ Performance Plus™ Wire Connector with the moisture resistance of a high impact, UV resistant tube prefilled with moisture resistant grease. It is UL Listed for 600 volts in direct bury applications.
  • Used for appliances and fixtures, automotive and marine, commercial construction, industrial construction and residential construction
  • Premium splice designed to connect and moisture seal an electrical connection for direct bury applications, rated up to 600V. Moisture resistant grease acts as a barrier for damp environments, reducing exposure to the elements in outdoor boxes and underground connections. Common uses: golf course irrigation, landscape lighting, direct bury.
  • Delivers uniform holding power
  • Withstands temperatures up to 221 °F (105 °C)

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611457195
  • Brand: 3M™
  • China RoHS - Below MCV: Yes
  • Closure Length (Metric): 93 mm
  • Color Family: Multi-Color
  • Conductor Size: 18 - 10 AWG
  • Conductor Sizes: 18 - 10 AWG
  • Connection Type: Wire
  • Connector Style: Direct Bury
  • Encapsulation Method: Moisture sealed spring connector
  • Flame Retardant: UL-94 V-2
  • Insulation Material: Tube is UV resistant Polypropylene
  • Manufacturing Origin: USA
  • Maximum Insulation Outer Diameter (Metric): 3.7 mm
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 18 AWG
  • Operating Temperature (Celsius): -40 °C to 105 °C
  • Operating Temperature (Fahrenheit): -40 °F to 221 °F
  • Operating Temperature Range (Celsius): -40 °C to 105 °C
  • Operating Temperature Range (Fahrenheit): -40 °F to 221 °F
  • Package Quantity: 100
  • Product Color: Red || Yellow
  • Product Type: Connector
  • Wire Connector: R/Y+
  • Wire Connector Type: Direct Bury Splice Kit
  • Wire Gauge Range: 10 to 18 American Wire Gauge (AWG)

Overview

UPC 05112858574
GTiN 00051128585740
Size 18 - 10 AWG
Applications Direct Bury
Temperature Rating -40 to 221 F
Family Brand Name 3M
TC Connection Wire
Sub Brand Scotchlok
Product Type Connector
Conductor Size 10 AWG
Connection Type Wire
Insulation Material UV Resistant Polypropylene
Max Operating Temperature 221 degrees F
Color Multi Color,Red ,Yellow
Voltage null
