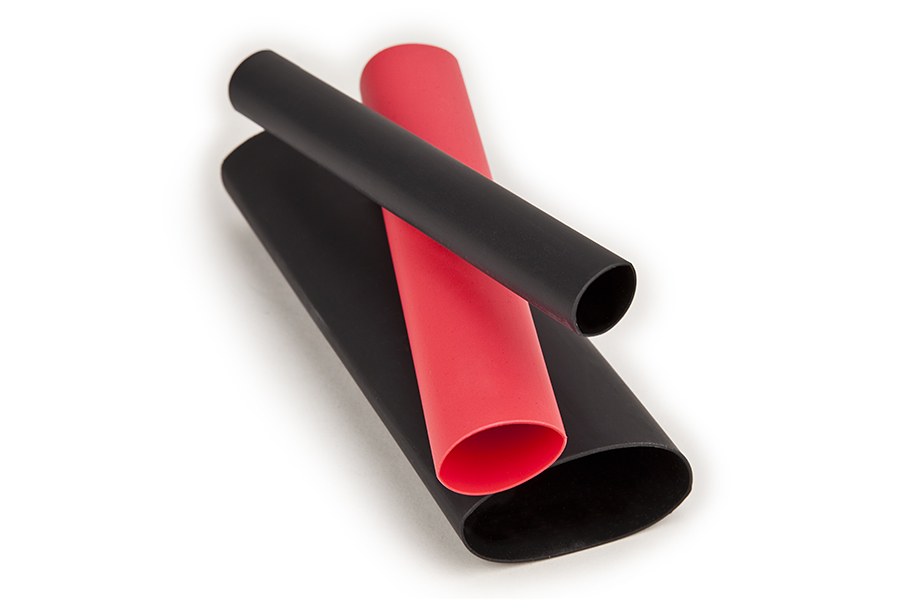

3M E40.350BK6"P EPS400 .350BK 6 IN
$42.31/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # "E40.350BK6""""P"
North Coast Part # 880263

Features

  • Dual-wall construction provides abrasion resistance and moisture-seal protection
  • Offers the advantage of integral, adhesive-lined construction
  • Offers protection for sealing voids in multiple wire bundles for automotive and marine applications
  • Made of semi-rigid polyolefin
  • Withstands temperatures of -67 to 230 degrees F (-55 to 110 degrees C)
  • Flame-retardant tubing is rated for 600V applications
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Specifications

  • Color Family: Black
  • Expanded Inner Diameter: 0.35 in
  • Expanded Inner Diameter (Metric): 8.89 mm
  • Family: 3M™ Heat Shrink EPS-400
  • Flame Retardant: Yes
  • Heat Shrink Type: Adhesive-Lined Polyolefin Heat Shrink Tubing
  • Inner Diameter After Shrink (Imperial): 0.8 in
  • Inner Diameter After Shrink (Metric): 2.03 mm
  • Inner Diameter Before Shrink (Imperial): 0.35 in
  • Inner Diameter Before Shrink (Metric): 8.89 mm
  • Material: Polyolefin
  • Maximum Operating Temperature (Celsius): 110 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 230 Degree Fahrenheit
  • Operating Temperature (Celsius): -55 °C to 110 °C
  • Operating Temperature (Fahrenheit): -67 °F to 230 °F
  • Overall Length (Imperial): 6 in
  • Product Color: Black
  • Recovered Inner Diameter: 0.8 in
  • Recovered Inner Diameter (Metric): 2.03 mm
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Shrink Ratio: 4:1
  • Tubing Type: Dual Wall (Adhesive Lined)
  • UL File Number: E-157227

Overview

UPC 05112860072
Family Brand Name 3M
GTiN 00051128600726
Length 6 in
Color Black
Operating Temperature 110 C
Type Dual Wall (Adhesive Lined)
Thickness 0.038
Shrink Ratio 4 to 1
Outside Diameter 0.35 in
Dielectric Strength 700 V/mil
Max Operating Temperature 230 degrees F
Overall Length 6 in
Inside Diameter 0.08
Material Polyolefin
