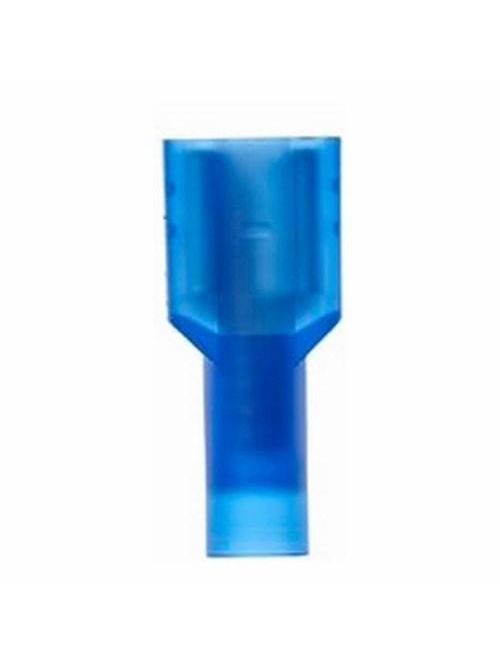

3M FDI14-250Q 25/Bag Fully Nylon Insulated Female Disconnect
$8.89/ea
In Stock | 19 available at 6 locations
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FDI14-250Q
North Coast Part # 877941

Overview

Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Specifications

  • Terminal Type: Disconnect
  • Thickness: 0.032 Inch
  • Pad Width: 0.25 Inch
  • Fastener Orientation: Female
  • Barrel Length: 0.25 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Terminal Style: Fully Insulated
  • Trademark: Highland
  • CSA File Number: LR22190
  • Width: 0.37 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Brand: Highland
  • Agency Approvals: UL and CSA
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • UL File Number: E70512
  • Insulation Material: Nylon
  • Packaging: 25 per bag
  • Length: 0.87 Inch
  • Barrel Style: Butted
  • Conductor Sizes: 16 - 14 AWG
  • Diameter: 0.23 Inch

Documents

Categories

Overview

UPC 05112860001
GTiN 00051128600016
Color Blue
Type Disconnect
Material Nylon
Wire Size 16-14 AWG
Family Brand Name 3M
TC Connection Disconnect
Sub Brand Highland
Length 0.87 in
Width 0.37 in
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 16 To 14 AWG
Insulation Material Nylon
Barrel Length 0.25 in
