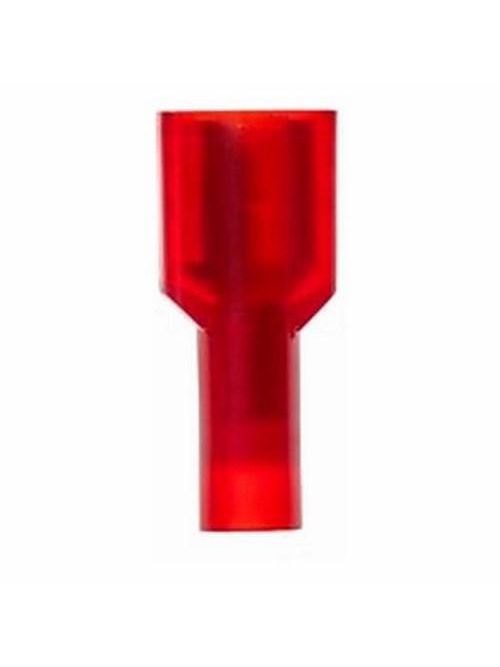

3M Industrial Safety FDI18-250Q 22 to 18 AWG Nylon Fully Insulated Butted Seam Female Disconnect Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$9.85/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FDI18-250Q
North Coast Part # 877942

Overview

Attached to male disconnect by tongue slipping over male tab. Use of dents and rolled edges on female part provides excellent holding force while allowing easy and quick disconnect.

Specifications

  • Terminal Type: Disconnect
  • RoHS 2011/65/EU Compliant: Yes
  • Conductor Sizes: 22 - 18 AWG
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Thickness: 0.032 Inch
  • Length: 0.87 Inch
  • Diameter: 0.23 Inch
  • Barrel Length: 0.25 Inch
  • Packaging: 25 per bag
  • Pad Width: 0.25 Inch
  • Width: 0.37 Inch
  • Insulation Material: Nylon
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Mates with Male Tab Width (W'): 0.25 Inch
  • Agency Approvals: UL and CSA
  • Trademark: Highland
  • Brand: Highland
  • CSA File Number: LR22190
  • UL File Number: E70512
  • Fastener Orientation: Female
  • Barrel Style: Butted
  • Terminal Style: Fully Insulated

Documents

Overview

UPC 05112860003
Item Long Description This female disconnect accepts a wire range of 22-18 AWG, a stud size of .250 and has a case quantity of 10 bags.
GTiN 00051128600030
Color Red
Type Female Disconnect
Material Nylon
Wire Size 22-18 AWG
Family Brand Name 3M
Terminal Size .250
Sub Brand Highland
Length 0.87 in
Width 0.37 in
Diameter 0.23 in
Thickness 0.032 in
Barrel Type Butted
Terminal Style Fully Insulated
Terminal Type Disconnect
Conductor Size 22 To 18 AWG
Insulation Material Nylon
Barrel Length 0.25 in
