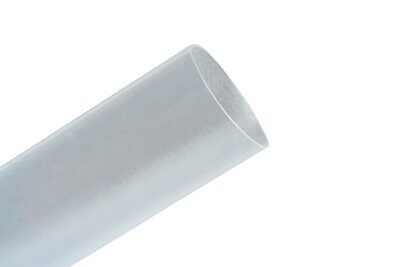

3M FP1.500CR100'L FP 1 1/2 CR SPL
$2.88/ea
Usually ships within 8 to 12 Days
ea
Adding...
Order in multiples of 100 (pack qty) Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # FP1.500CR100'L
North Coast Part # 819828

Features

  • Balances electrical, physical and chemical properties for various industrial and military applications
  • 3M™ Heat Shrink Tubing FP-301 is a general purpose, thin wall tubing that provides a balance of electrical, physical and chemical properties, making it ideal for industrial and military applications. This tubing has a 2:1 shrink ratio and provides flame retardant insulation for 600V rated applications. It has a flexible polyolefin construction that offers moisture seal protection.
  • Offers shrink-fit protection and strain relief of wires, solder joints, terminals and connections
  • Suitable for lightweight wire-harness covering, fire-resistant covering, wire marking, wire bundling and component packaging
  • 3M™ Heat Shrink Tubing FP-301 is color-coded for quick and easy identification of the wire. This split-resistant tubing is used as shrink-fit, electrical insulation over cable splices or terminations. The high-expansion-ratio tubing is mechanically tough, easily markable and resists cold flow. It is perfect for lightweight wire-harness covering, fire-resistant covering, wire marking, wire bundling and component packaging. It withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C). SAE-AMS-DTL-23053/5, Class 2, AMS-3636, AMS-3637, CSA Certified and RoHS 2011/65/EU Compliant.
  • Made of flexible polyolefin
  • Withstands temperatures of -67 to 275 degrees F (-55 to 135 degrees C)
  • Flame-retardant tubing is rated for 600V applications

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80610220016
  • Agency Approvals: CSA
  • Brand: 3M™
  • Color Family: Transparent
  • Dielectric Strength: 900 Volt
  • Elongation: 400 Decibel
  • Expanded Inner Diameter: 1.5 in
  • Expanded Inner Diameter (Metric): 38.1 mm
  • Family: 3M™ Heat Shrink Thin-Wall Tubing FP-301
  • Flame Retardant: No
  • Flammability Rating: No Flame Rating
  • Heat Shrink Type: Single-Wall Polyolefin Heat Shrink Tubing
  • Inner Diameter After Shrink (Imperial): 0.75 in
  • Inner Diameter After Shrink (Metric): 19.05 mm
  • Inner Diameter Before Shrink (Imperial): 1.5 in
  • Inner Diameter Before Shrink (Metric): 38.1 mm
  • Manufacturing Origin: USA
  • Material: Flexible Polyolefin
  • Maximum Operating Temperature (Celsius): 135 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 275 Degree Fahrenheit
  • Mil Spec: AMS-DTL-23053/5, Class 2
  • Minimum Shrink Temperature (Celsius): 100 Degree Celsius
  • National Stock Number: 5970007171474
  • Non-Corrosive: Yes
  • Operating Temperature (Celsius): -55 to 135 Degrees Celsius
  • Operating Temperature Range (Celsius): -55 °C to +135 °C
  • Operating Temperature Range (Fahrenheit): -67 °F to 275 °F
  • Overall Length (Imperial): 100 ft
  • Recovered Inner Diameter: 0.75 in
  • Recovered Inner Diameter (Metric): 19.05 mm
  • Shrink Ratio: 2:1
  • Solution for: Access Network: FTTH/FTTB/CATV || Access Network: xDSL || Long-haul/Metro Loop Network: Outdoor || Wireless Network: Backhaul || Wireless Network: Infrastructure Accessories
  • Tensile Strength (Imperial): 2400 Pound-Force Per Square Inch
  • Tubing Type: Single Wall (Thin)

Overview

UPC 05400708533
GTiN 00054007085331
Family Brand Name 3M
Length 100 ft
Color Transparent
Operating Temperature 135 C
Shrink Ratio 2 to 1
Flame Retardant No
Dielectric Strength 900 V/mil
Type Single (Thin) Wall
Thickness 0.04
Outside Diameter 1.5 in
Max Operating Temperature 275 degrees F
Overall Length 100 ft
Inside Diameter 0.75
