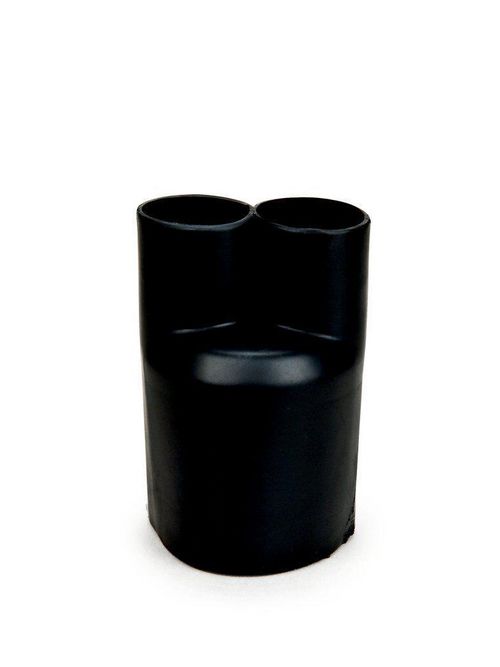

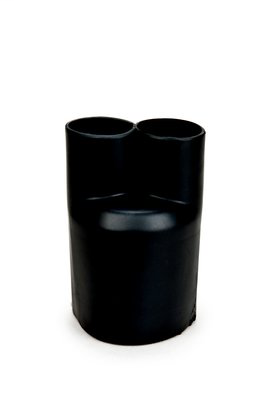

3M HDBB-230-1-250 Heat Shrink Heavy Duty Breakout Boots
$83.62/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # HDBB-230-1-250
North Coast Part # 333711

Features

  • Ensures excellent insulation and void-free sealing of cable breakouts
  • 3M™ Heat Shrink Cable Breakout Boot 2 insulates and seals cable breakouts in multi conductor armored or sheathed cables. This heavy duty boot offers good electrical and mechanical protection. The cross linked, MIL I 81765 1 qualified polyolefin construction is semi rigid and flame retardant.
  • Internal coating of adhesive offers reliable environmental sealing
  • Provides maximum electrical and mechanical protection
  • 3M™ Heat Shrink Breakout Boot has an internal coating of adhesive that ensures reliable environmental sealing of cable breakouts in cables and conduit ends. RoHS 2011/65/EU Compliant.
  • Semi-rigid, flame-retardant polyolefin construction
  • RoHS 2011/65/EU Compliant

Specifications

  • 3M ID: 80610767008
  • Agency Approvals: NAVSEA, DOD-STD-2003-1
  • Brand: 3M™
  • Cable End Expanded: 3 in
  • Cable End Recovered: 1.9 in
  • Conductor Legs Expanded: 1.45 in
  • Conductor Legs Recovered: 0.5 in
  • Family: 3M™ Heat Shrink Heavy Duty Breakout Boots HDBB
  • Flame Retardant: Yes
  • Heat Shrink Type: Heat Shrink Molded Shapes
  • Inner Diameter After Shrink (Imperial): 0.5 in
  • Inner Diameter After Shrink (Metric): 12.7 mm
  • Inner Diameter Before Shrink (Imperial): 1.45 in
  • Inner Diameter Before Shrink (Metric): 36.8 mm
  • Material: Semi-Rigid, Flame Retardant Polyolefin
  • Number of Outlets: 2
  • Outer Diameter After Shrink (Imperial): 1.5 in
  • Outer Diameter After Shrink (Metric): 38.1 mm
  • Outer Diameter Before Shrink (Imperial): 3 in
  • Outer Diameter Before Shrink (Metric): 76.2 mm
  • Outlet Style: 2-Way
  • Shrink Type: Heat Shrink
  • Transition Type: 1-2 Breakout

Overview

UPC 05113535993
GTiN 00051135359938
Color Black
Type Breatout Boot
Applications provide strain relief and environmental/mechanical protection for breakouts in multiconductor armored or sheathed cables.
Family Brand Name 3M
Material Polyolefin
Flame Retardant Yes
