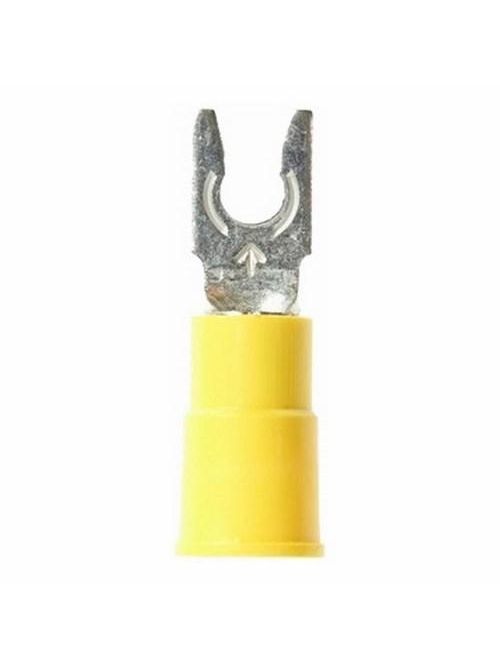

3M LFV10-6Q Highland 25/Bag Locking Fork Vinyl Insulated Terminal
Product image thumbnail 0
Product image thumbnail 1
$12.00/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # LFV10-6Q
North Coast Part # 931424

Overview

The spring-like tongue locks into place around the stud even when the mount screw is not tightened. Extra force is required to remove it from the stud.

Specifications

  • Barrel Length: 0.25 Inch
  • Brand: Highland
  • CSA File Number: LR22190
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Maximum Lock Width: 0.3 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • Maximum Insulation Outer Diameter: 0.25 Inch
  • Width: 0.28 Inch
  • UL File Number: E23438
  • Thickness: 0.04 Inch
  • Barrel Style: Butted
  • Insulation Material: Vinyl
  • Stud Size: 6
  • Terminal Type: Fork
  • Length: 1.03 Inch
  • Packaging: 25 per bag
  • Conductor Sizes: 12 - 10 AWG
  • Agency Approvals: UL and CSA
  • Clearance (C): 0.28 Inch
  • Dimension E: 0.83 Inch
  • Trademark: Highland
  • Terminal Style: Locking

Documents

Overview

UPC 05112860015
GTiN 00051128600153
Color Yellow
Type Locking Fork Terminal
Material PVC
Wire Size 12-10 AWG
Family Brand Name 3M
Terminal Size 6
Sub Brand Highland
Length 1.03 in
Width 0.28 in
Thickness 0.04 in
Barrel Type Butted
Stud Size 6
Terminal Style Locking
Terminal Type Fork
Conductor Size 12 To 10 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
