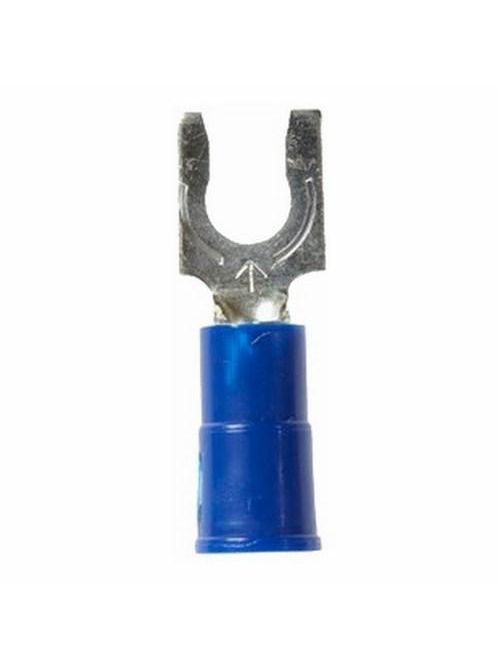

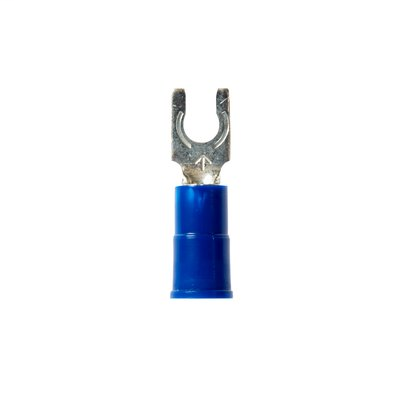

3M LFV14-8Q Highland 25/Bag Locking Vinyl Insulated Fork
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # LFV14-8Q
North Coast Part # 877948


The spring-like tongue locks into place around the stud even when the mount screw is not tightened. Extra force is required to remove it from the stud.


  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Length: 0.88 Inch
  • Terminal Type: Fork
  • Terminal Style: Locking
  • Dimension E: 0.7 Inch
  • Trademark: Highland
  • Thickness: 0.03 Inch
  • Stud Size: 8
  • UL File Number: E23438
  • Insulation Material: Vinyl
  • Barrel Length: 0.25 Inch
  • CSA File Number: LR22190
  • RoHS 2011/65/EU Compliant: Yes
  • Maximum Lock Width: 0.34 Inch
  • Barrel Style: Butted
  • Conductor Sizes: 16 - 14 AWG
  • Packaging: 25 per bag
  • Width: 0.3 Inch
  • Brand: Highland
  • Clearance (C): 0.25 Inch
  • Maximum Insulation Outer Diameter: 0.17 Inch
  • Agency Approvals: UL and CSA



UPC 05112860019
Item Long Description This terminal accepts a wire range of 16-14AWG, a stud size of 8 and has a case quantity of 10 bags.
GTiN 00051128600191
Color Blue
Type Locking
Material PVC
Wire Size 16-14 AWG
Family Brand Name 3M
Terminal Size 8
TC Connection Fork
Sub Brand Highland
Length 0.88 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Butted
Stud Size 8
Terminal Style Locking
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
