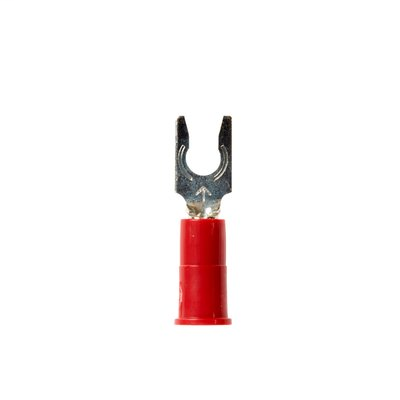

3M LFV18-8Q Highland 25/Bag Locking Vinyl Insulated Fork
$9.59/ea
In Stock | 10 available at 1 location
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # LFV18-8Q
North Coast Part # 878020

Overview

The spring-like tongue locks into place around the stud even when the mount screw is not tightened. Extra force is required to remove it from the stud.

Specifications

  • Width: 0.3 Inch
  • Barrel Length: 0.25 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Brand: Highland
  • Clearance (C): 0.25 Inch
  • Packaging: 25 per bag
  • Length: 0.88 Inch
  • Stud Size: 8
  • Terminal Type: Fork
  • Agency Approvals: UL and CSA
  • Maximum Lock Width: 0.34 Inch
  • CSA File Number: LR22190
  • Maximum Insulation Outer Diameter: 0.145 Inch
  • Terminal Style: Locking
  • Conductor Sizes: 22 - 18 AWG
  • RoHS 2011/65/EU Compliant: Yes
  • Insulation Material: Vinyl
  • Trademark: Highland
  • Dimension E: 0.7 Inch
  • Barrel Style: Butted
  • Thickness: 0.03 Inch
  • UL File Number: E23438

Documents

Overview

UPC 05112860021
GTiN 00051128600214
Color Red
Type Locking
Material PVC
Wire Size 22-18 AWG
Family Brand Name 3M
Terminal Size 8
TC Connection Fork
Sub Brand Highland
Length 0.88 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Butted
Stud Size 8
Terminal Style Locking
Terminal Type Fork
Conductor Size 22 To 18 AWG
Insulation Material Vinyl
Barrel Length 0.25 in
