3M M10-10FLX M10-10FLX LOCK FORK NO

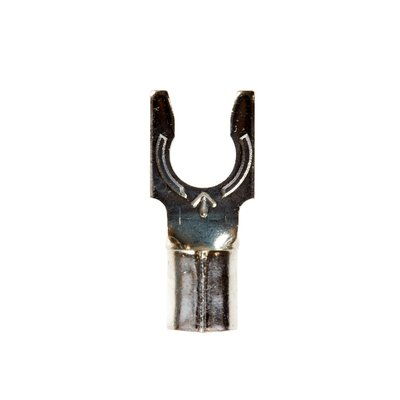

Product image thumbnail 0

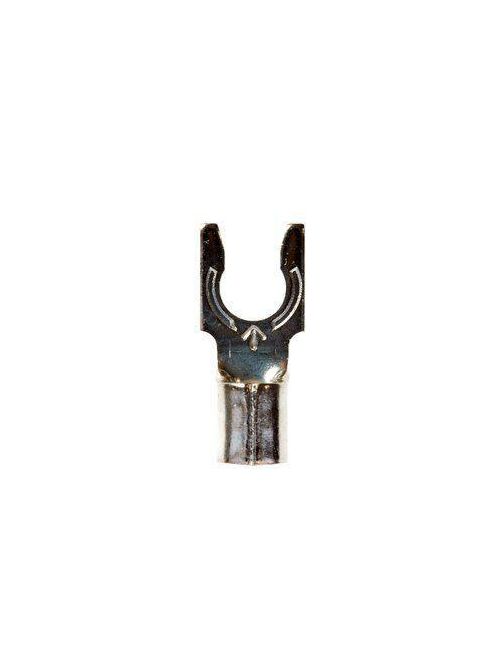

Product image thumbnail 1
Product image thumbnail 2
$0.87/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-10FLX
North Coast Part # 673803

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.135 Inch
  • Barrel Style: Brazed
  • Conductor Size: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.53 Inch
  • Fork Type: Locking
  • Insulation Material: None
  • Maximum Conductor Size: 10 AWG
  • Maximum Lock Width: 0.36 Inch
  • Minimum Conductor Size: 12 AWG
  • Minimum Order Quantity: 50
  • Overall Length (Imperial): 0.73 in
  • Overall Width (Imperial): 0.32 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Locking
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858834
Item Long Description 3M Scotchlok Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128588345
Type Fork
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 0.73 in
Width 0.32 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 12 To 10 AWG
Insulation Material Non-Insulated
Overall Length 0.73 in
