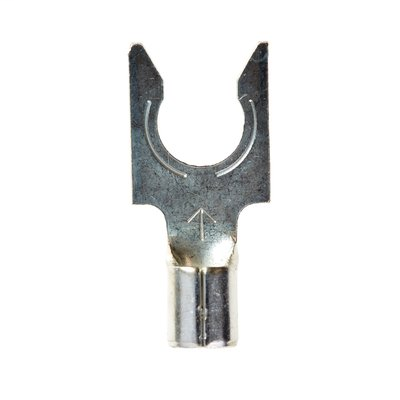

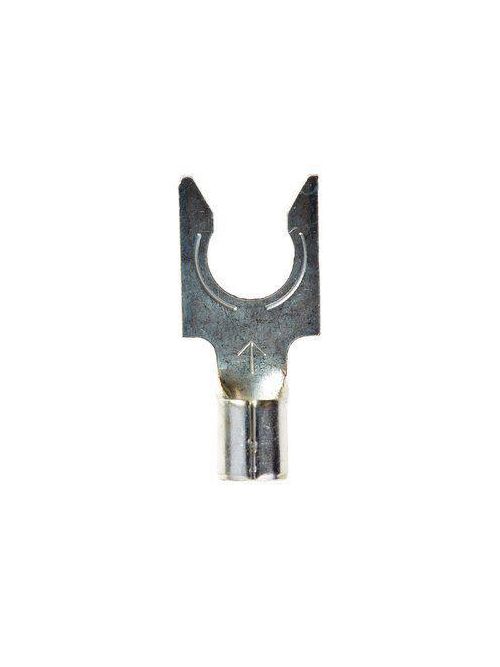

3M M10-14FLX M10-14FLX LOCK FORK NO
$1.31/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-14FLX
North Coast Part # 673805

Specifications

  • Trademark: Scotchlok
  • Maximum Lock Width: 0.48 Inch
  • Agency Approvals: UL and CSA
  • CSA File Number: LR22190
  • Clearance (C): 0.44 Inch
  • Barrel Style: Brazed
  • UL File Number: E23438
  • Dimension E: 0.69 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Type: Fork
  • RoHS 2011/65/EU Compliant: Yes
  • Thickness: 0.04 Inch
  • Insulation Material: Non-Insulated
  • Width: 0.43 Inch
  • Terminal Style: Locking
  • Packaging: 50 per bottle
  • Stud Size: 1/4 Inch
  • Length: 0.94 Inch
  • Brand: Scotchlok
  • Conductor Sizes: 12 - 10 AWG

Documents

Overview

UPC 05112858831
GTiN 00051128588314
Type Fork
Stud Size 1/4 in
Family Brand Name 3M
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 0.94 in
Width 0.43 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 12 To 10 AWG
Insulation Material Non-Insulated
