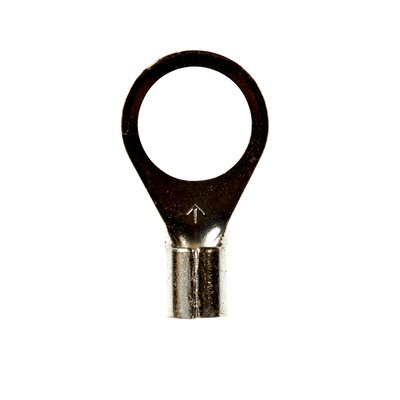

3M Industrial Safety M10-38R/SX 12 to 10 AWG Non-Insulated Brazed Seam Ring Tongue Terminal
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-38R/SX
North Coast Part # 673799


  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case


  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 0.96 in
  • Overall Width (Imperial): 0.54 in
  • Terminal Type: Ring


GTiN 00051128589823
Type Ring
Stud Size 3/8 Inch
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Product UPC 05112858982
Length 0.96 Inch
Width 0.54 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 10 AWG
Insulation Material Non-Insulated
Overall Length 0.96 in
