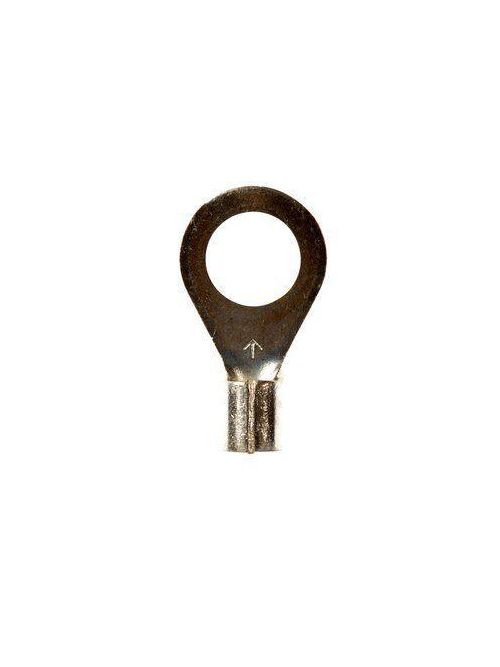

3M M10-516R/SX M10-516R/SX RING NON
Product image thumbnail 0
Product image thumbnail 1
$0.88/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-516R/SX
North Coast Part # 673800

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 5/16 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Connection Width (Imperial): 0.315 in
  • Connection Width (Metric): 8 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 0.96 in
  • Overall Width (Imperial): 0.54 in
  • Terminal Type: Ring

Overview

UPC 05112858981
GTiN 00051128589816
Type Ring
Stud Size 5/16 in
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 0.96 in
Width 0.54 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 12 To 10 AWG
Insulation Material Non-Insulated
Overall Length 0.96 in
