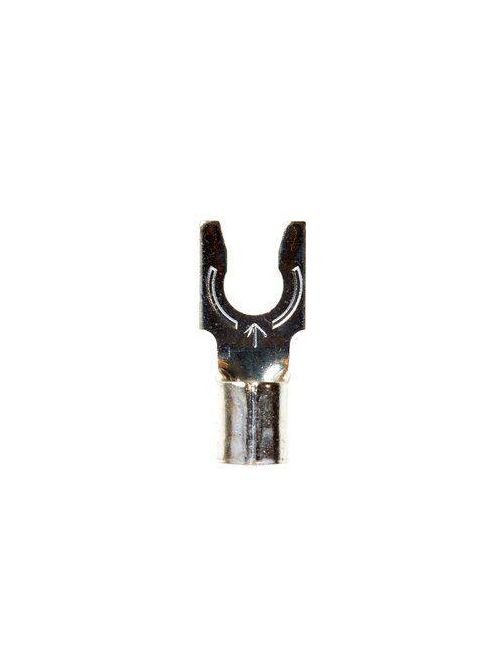

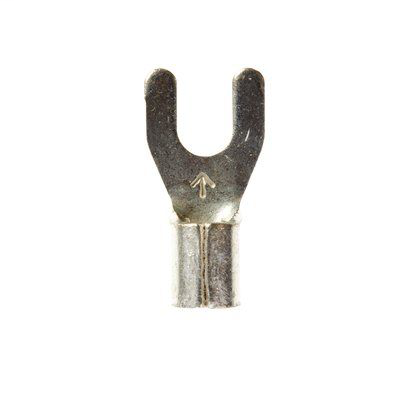

3M M10-8FLX M10-8FLX LOCK FORK NON-
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.03/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10-8FLX
North Coast Part # 673795

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Stud size #8
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.135 Inch
  • Barrel Style: Brazed
  • Conductor Size: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.53 Inch
  • Fork Type: Locking
  • Insulation Material: None
  • Maximum Conductor Size: 10 AWG
  • Maximum Lock Width: 0.35 Inch
  • Minimum Conductor Size: 12 AWG
  • Minimum Order Quantity: 50
  • Overall Length (Imperial): 0.73 in
  • Overall Width (Imperial): 0.32 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #8
  • Terminal Style: Locking
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

GTiN 00051128588338
Type Fork
Stud Size 8
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Product UPC 05112858833
Length 0.73 Inch
Width 0.32 in
Thickness 0.04 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 10 AWG
Insulation Material Non-Insulated
Overall Length 0.73 in
