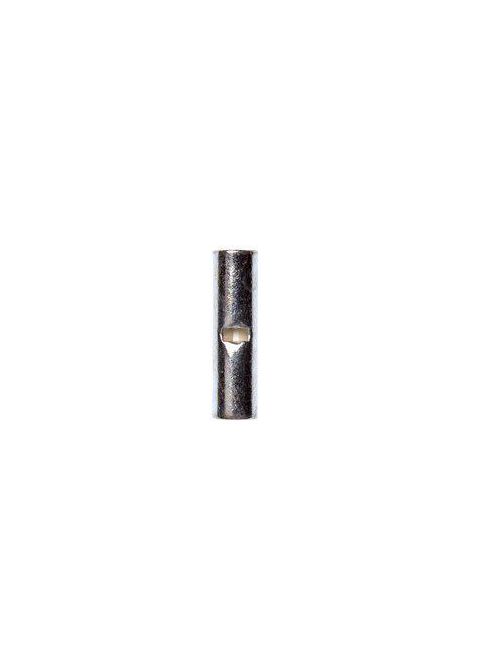

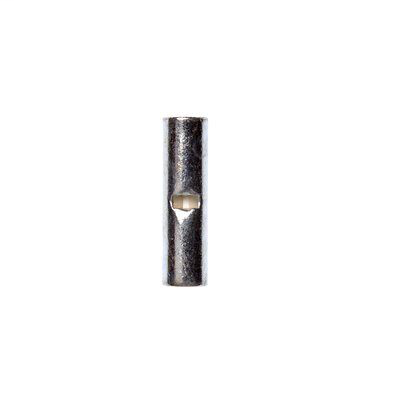

3M M10BCX 50/Bottle Seamless Non-Insulated Butt Connector
$1.03/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M10BCX
North Coast Part # 673798

Features

  • Non-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • 3M™ Scotchlok™ Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a non-insulated, seamless barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Built-in wire stop for correct positioning
  • 3M™ Scotchlok™ Butt Connector has a non-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458714
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Connector Type: Butt
  • Insulation Material: Non-Insulated
  • Maximum Conductor Size: 10 AWG
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 0.81 in
  • Overall Length (Metric): 20.574 mm
  • Product Color: Metal

Overview

UPC 05112858726
GTiN 00051128587263
Type Butt
Family Brand Name Scotchlok
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Length 0.81 in
Thickness 0.038 in
Barrel Type Seamless
Terminal Style Standard
Terminal Type Butt
Conductor Size 12 To 10 AWG
Insulation Material Non-Insulated
Barrel Length 0.38 in
Color Metal
Overall Length 0.81 in
