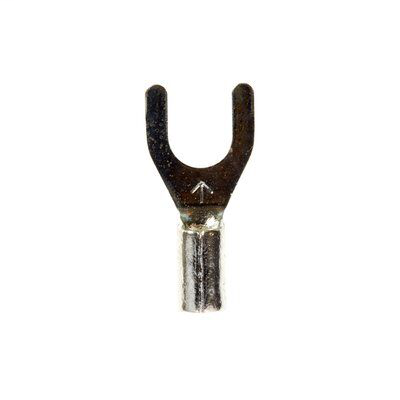

3M M14-10FX 100/Bottle Non-Insulated Fork
$0.65/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M14-10FX
North Coast Part # 673792

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Standard Fork is a lug connection terminal that has a wider tongue for use on free-standing studs. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Beveled mouth offers easy insertion of wires
  • 3M™ Scotchlok™ Standard Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Wider-tongue design for use on free-standing studs
  • Stud size #10
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458094
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok™
  • Clearance (C): 0.29 Inch
  • Conductor Size: 16 - 14 AWG
  • Dimension E: 0.54 Inch
  • Fork Type: Standard
  • Insulation Material: None
  • Manufacturing Origin: USA
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.7 in
  • Overall Width (Imperial): 0.34 in
  • Stud Size: #10
  • Terminal Style: Standard
  • Terminal Type: Fork

Overview

UPC 05112858664
GTiN 00051128586648
Type Fork
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.7 in
Width 0.34 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Fork
Conductor Size 14 AWG
Insulation Material Non-Insulated
Overall Length 0.7 in
