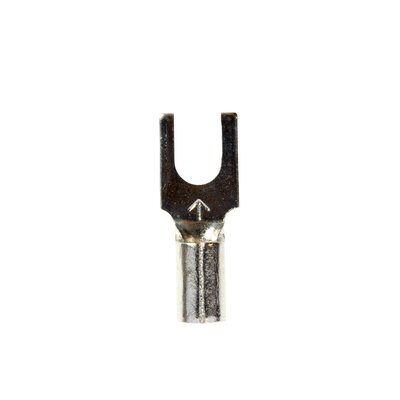

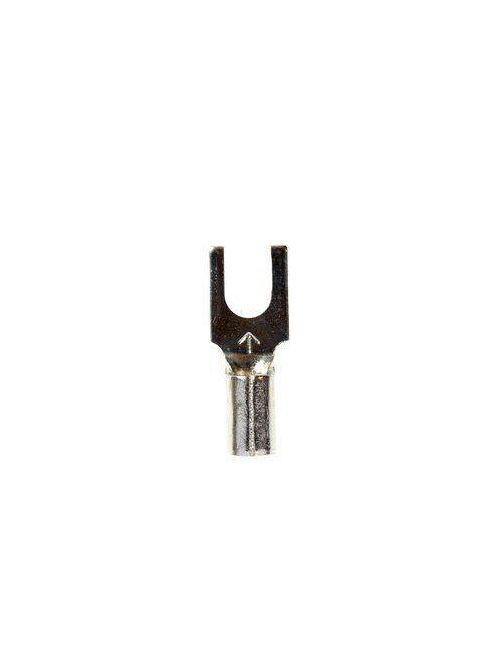

3M M14-6FB/SX M14-6FB/SX BLOCK FORK
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.67/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M14-6FB/SX
North Coast Part # 673788

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #6
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.090 Inch
  • Barrel Style: Brazed
  • Conductor Size: 16 - 14 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.50 Inch
  • Fork Type: Block
  • Insulation Material: None
  • Maximum Conductor Size: 14 AWG
  • Minimum Conductor Size: 16 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.65 in
  • Overall Width (Imperial): 0.25 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #6
  • Terminal Style: Block
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858969
Item Long Description 3M Scotchlok Small Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128589694
Type Fork
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.65 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Block
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
Overall Length 0.65 in
