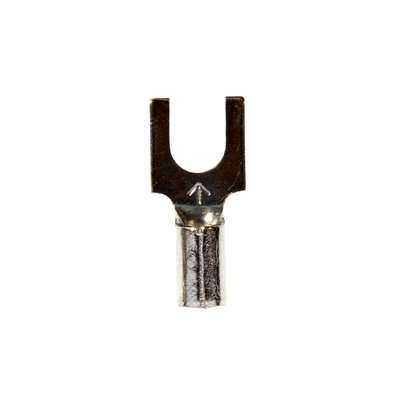

3M M14-8FLX Locking Fork Nn-Insulat
$0.83/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M14-8FLX
North Coast Part # 673776

Specifications

  • Insulation Material: Non-Insulated
  • Length: 0.68 Inch
  • Clearance (C): 0.25 Inch
  • Maximum Lock Width: 0.34 Inch
  • Brand: Scotchlok
  • Dimension E: 0.50 Inch
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • CSA File Number: LR22190
  • Thickness: 0.03 Inch
  • Terminal Style: Locking
  • Stud Size: 8
  • UL File Number: E23438
  • Barrel Style: Brazed
  • Trademark: Scotchlok
  • Packaging: 100 per bottle
  • Conductor Sizes: 16 - 14 AWG
  • Width: 0.3 Inch
  • Terminal Type: Fork
  • Agency Approvals: UL and CSA
  • RoHS 2011/65/EU Compliant: Yes

Documents

Overview

UPC 05112858843
GTiN 00051128588437
Type Fork
Stud Size 8
Family Brand Name 3M
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 0.68 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 16 To 14 AWG
Insulation Material Non-Insulated
