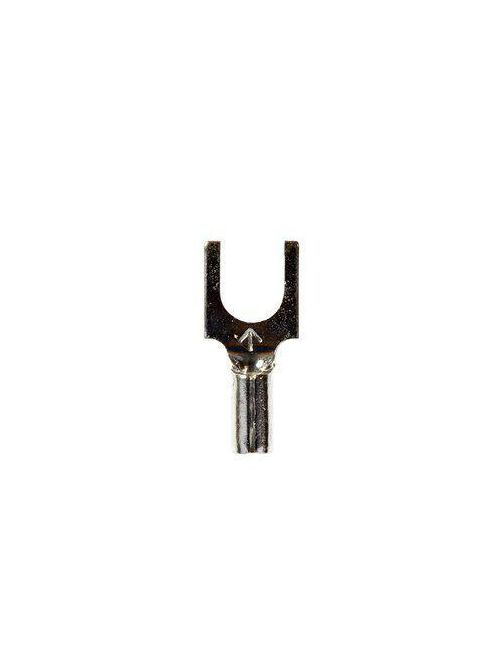

3M M18-10FBX M18-10FBX BLK FK NON-I
Product image thumbnail 0
Product image thumbnail 1
$0.52/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M18-10FBX
North Coast Part # 673779

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • 3M™ Scotchlok™ Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Suitable for use in a terminal block
  • 3M™ Scotchlok™ Block Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. The sides of the terminal lie flat against the barrier portion of the terminal block to provide electrical contacts. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465958
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • Clearance (C): 0.25 Inch
  • Conductor Size: 22 - 18 AWG
  • Dimension E: 0.50 Inch
  • Fork Type: Block
  • Insulation Material: None
  • Manufacturing Origin: USA
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.65 in
  • Overall Width (Imperial): 0.3 in
  • Stud Size: #10
  • Terminal Style: Block
  • Terminal Type: Fork

Overview

UPC 05112858949
GTiN 00051128589496
Type Fork
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.65 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Block
Terminal Type Fork
Conductor Size 18 AWG
Insulation Material Non-Insulated
Overall Length 0.65 in
