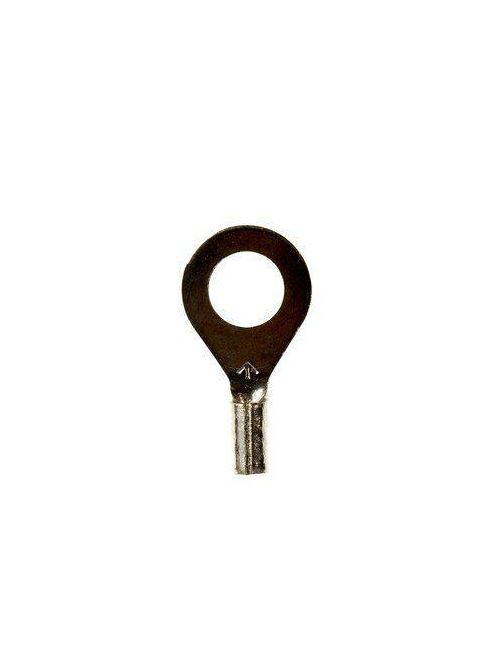

3M M18-14R/SX M18-14R/SX RING NON-I
Product image thumbnail 0
Product image thumbnail 1
$0.75/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M18-14R/SX
North Coast Part # 673775

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 0.89 in
  • Overall Width (Imperial): 0.47 in
  • Terminal Type: Ring

Overview

UPC 05112858940
GTiN 00051128589403
Type Ring
Stud Size 1/4 Inch
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.89 in
Width 0.47 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 18 AWG
Insulation Material Non-Insulated
Overall Length 0.89 in
