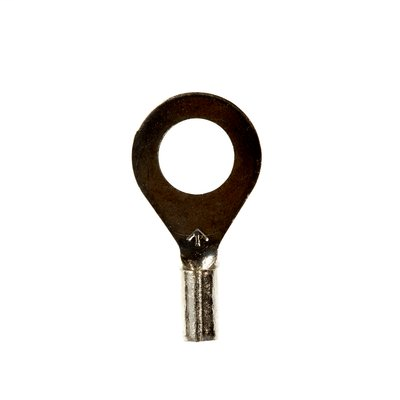

3M M18-38RX Ring Nn-Insulated, 100/
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.86/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M18-38RX
North Coast Part # 673768

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611465875
  • Brand: Scotchlok™

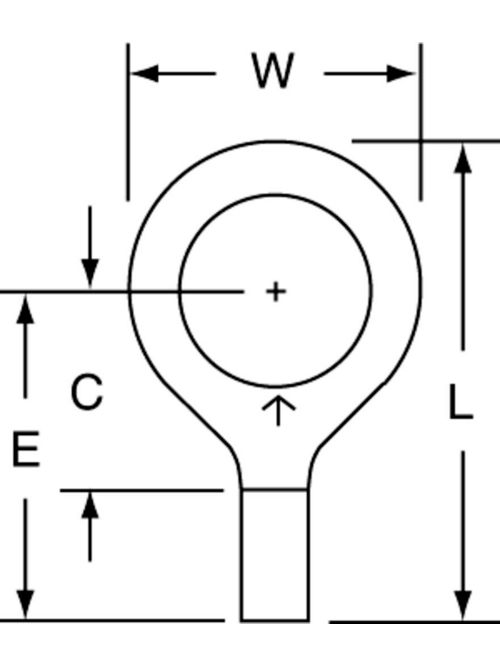

  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Overall Length (Imperial): 0.93 in
  • Overall Width (Imperial): 0.56 in
  • Terminal Type: Ring

Overview

UPC 05112858941
Item Long Description Ring Non-Insulated, 100/bottle, M18-38RX
GTiN 00051128589410
Type Ring
Stud Size 3/8 in
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.93 in
Width 0.56 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 22 To 18 AWG
Insulation Material Non-Insulated
Overall Length 0.93 in
