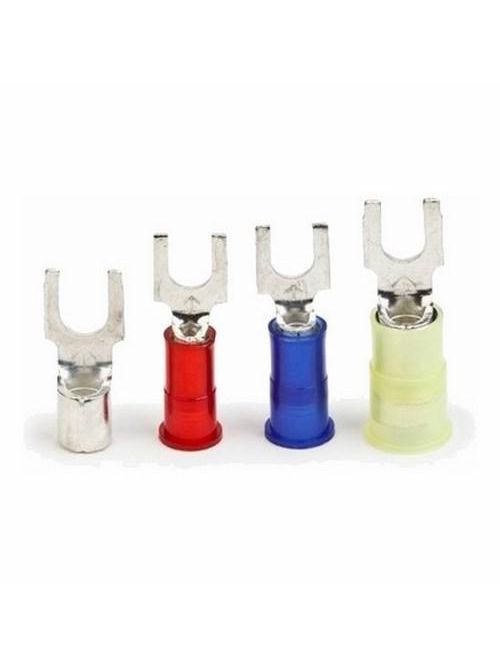

3M M18-6FB/SX Block Fork Nn-Insulat
$0.64/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M18-6FB/SX
North Coast Part # 673770

Specifications

  • Length: 0.65 Inch
  • Insulation Material: Non-Insulated
  • Terminal Style: Block
  • Agency Approvals: UL and CSA
  • Stud Size: 6
  • Terminal Type: Fork
  • Barrel Style: Brazed
  • Brand: Scotchlok
  • Trademark: Scotchlok
  • CSA File Number: LR22190
  • Thickness: 0.03 Inch
  • Clearance (C): 0.25 Inch
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Width: 0.25 Inch
  • Dimension E: 0.50 Inch
  • Conductor Sizes: 22 - 18 AWG
  • UL File Number: E23438
  • Packaging: 100 per bottle

Documents

Overview

UPC 05112858948
GTiN 00051128589489
Type Fork
Stud Size 6
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.65 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Block
Terminal Type Fork
Conductor Size 22 To 18 AWG
Insulation Material Non-Insulated
