3M M18-6FLX Locking Fork Nn-Insulat
$0.83/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M18-6FLX
North Coast Part # 673762

Overview

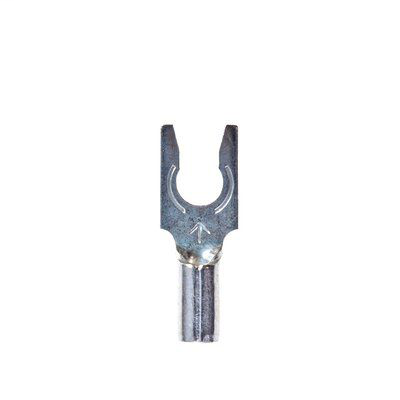

3M™ Scotchlok™ Locking Fork is a lug connection terminal that has a spring-like tongue to securely lock around the stud. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Locking Fork Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Spring-like tongue firmly fits around the stud
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611464969
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok
  • Clearance (C): 0.25 Inch
  • Conductor Size: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.50 Inch
  • Insulation Material: Non-Insulated
  • Length: 0.68 Inch
  • Maximum Lock Width: 0.27 Inch
  • Packaging: 100 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #6
  • Terminal Style: Locking
  • Terminal Type: Fork
  • Thickness: 0.03 Inch
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.25 Inch

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858850
GTiN 00051128588505
Type Fork
Stud Size 6
Family Brand Name 3M
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.68 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 18 AWG
Insulation Material Non-Insulated
