3M M18-8FBX M18-8FBX NON-INS BLOCK
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.53/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M18-8FBX
North Coast Part # 673766

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Suitable for use in a terminal block
  • Stud size #8
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • Barrel Inside Diameter: 0.070 Inch
  • Barrel Style: Brazed
  • Conductor Size: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.50 Inch
  • Fork Type: Block
  • Insulation Material: None
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 100
  • Overall Length (Imperial): 0.65 in
  • Overall Width (Imperial): 0.3 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #8
  • Terminal Style: Block
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858646

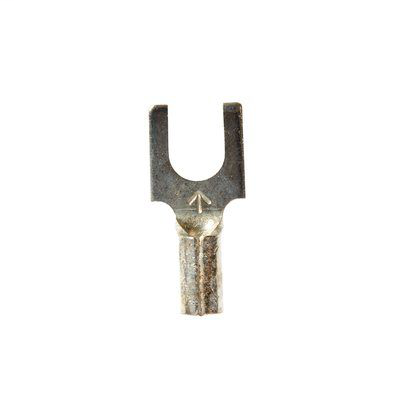

Item Long Description 3M Scotchlok Block Fork is a lug connection terminal that ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands temperatures of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128586464
Type Fork
Stud Size 8
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.65 in
Width 0.3 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Block
Terminal Type Fork
Conductor Size 18 AWG
Insulation Material Non-Insulated
Overall Length 0.65 in
