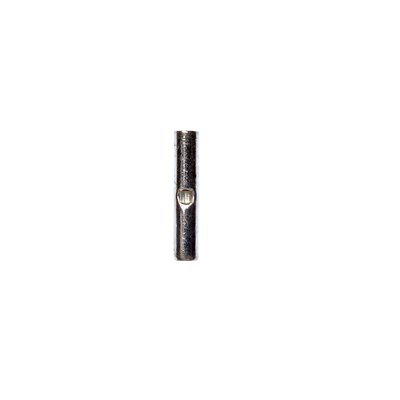

3M M18BCX M18BCX NON-INSULATED B
$0.68/ea
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M18BCX
North Coast Part # 673760

Features

  • Non-insulated, seamless barrel ensures a secure fit and offers reliable performance
  • 3M™ Scotchlok™ Butt Connector ensures an ideal fit while offering reliable and safe performance. The connector has a non-insulated, seamless barrel and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Offers electrical connection to a pre-stripped end of a stranded wire
  • 3M™ Scotchlok™ Butt Connector has a non-insulated, seamless barrel and provides electrical connection to a pre-stripped end of a stranded wire. It has chamfered barrel ends that enable fast, simple wire insertion and allows for correct positioning with built-in wire stop. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Built-in wire stop for correct positioning
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611457948
  • Agency Approvals: UL and CSA
  • Barrel Length (Imperial): 0.28 Inch
  • Barrel Style: Seamless
  • Brand: Scotchlok™
  • Conductor Size: 22 - 18 AWG
  • Conductor Sizes: 22 - 18 AWG
  • Connection Type: Butt
  • Connector Type: Butt
  • Insulation Material: Non-Insulated
  • Manufacturing Origin: USA
  • Material: ETP Copper
  • Maximum Conductor Size: 22 AWG
  • Maximum Insulation Outside Diameter: 0.145 in
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 18 AWG
  • Minimum Conductor Size: 18 AWG
  • Minimum Order Quantity: 100
  • Minimum Wire Gauge: 22 AWG
  • Overall Length (Imperial): 0.63 in
  • Overall Length (Metric): 16 mm
  • Product Color: Metal
  • Product Type: Connector
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors

Overview

UPC 05112858649
GTiN 00051128586495
Type Butt
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 0.63 in
Color Metal
Thickness 0.031 in
Barrel Type Seamless
Material ETP Copper
Terminal Style Standard
Terminal Type Butt Connectors
Product Type Connector
Conductor Size 22-18 AWG
Connection Type Butt
Insulation Material Non-Insulated
Max Operating Temperature 221 degrees F
Barrel Length 0.28 in
Overall Length 0.63 in
