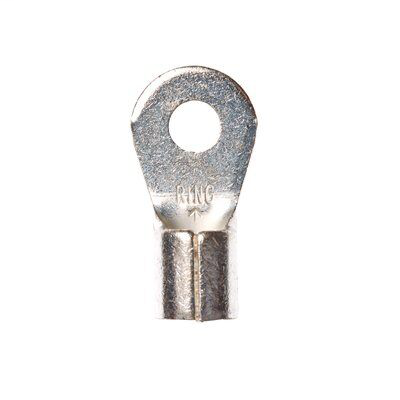

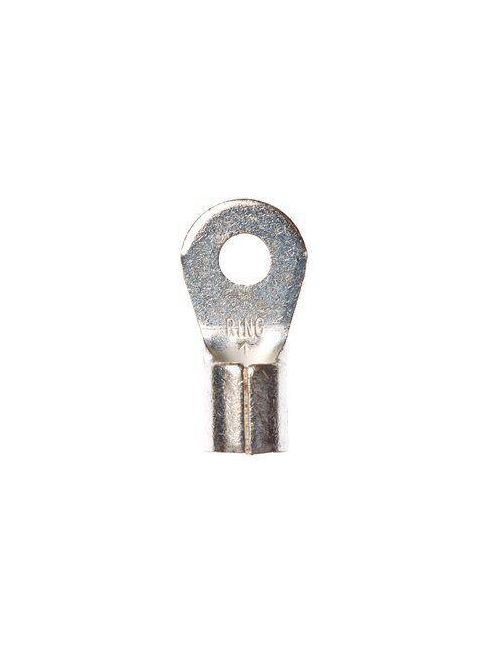

3M M4-14RX M4-14RX RING NON-INS BTL
$4.10/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M4-14RX
North Coast Part # 673751

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • 3M™ Scotchlok™ Ring Tongue Terminal ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire size 4 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 10/carton, 100/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611458466
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Overall Length (Imperial): 1.34 in
  • Overall Width (Imperial): 0.68 in
  • Terminal Type: Ring

Overview

UPC 05112858701
GTiN 00051128587010
Type Ring
Stud Size 1/4 in
Family Brand Name Scotchlok
Terminal Size 4 AWG
Sub Brand Scotchlok
Length 1.34 in
Width 0.68 in
Thickness 0.075 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 4 AWG
Insulation Material Non-Insulated
Overall Length 1.34 in
