3M M4-38RX M4-38RX RING NON-INS BTL

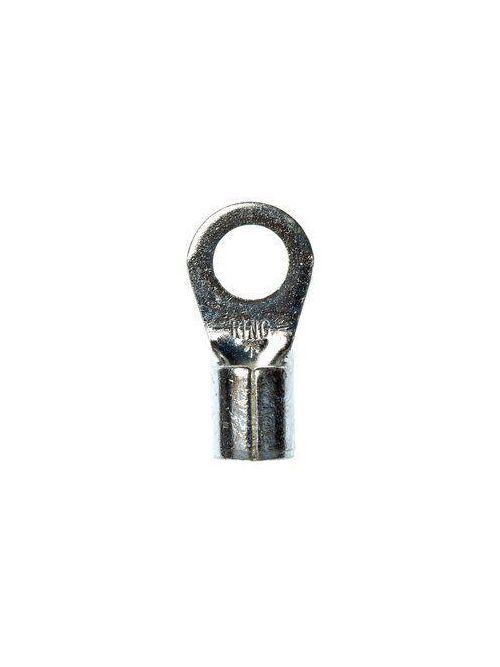

Product image thumbnail 0

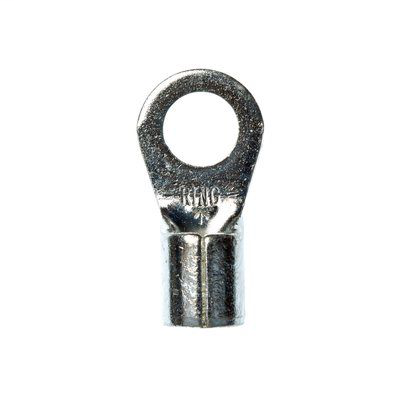

Product image thumbnail 1
Product image thumbnail 2
$3.84/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M4-38RX
North Coast Part # 673753

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire size 4 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 50/carton, 500/case

Specifications

  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 4 AWG
  • Minimum Conductor Size: 4 AWG
  • Overall Length (Imperial): 1.34 in
  • Overall Width (Imperial): 0.68 in
  • Terminal Type: Ring

Overview

UPC 05112858703
Item Long Description 3M Scotchlok Ring Tongue Terminal ensures an optimum fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587034
Type Ring
Stud Size 3/8 Inch
Family Brand Name Scotchlok
Terminal Size 4 AWG
Sub Brand Scotchlok
Length 1.34 in
Width 0.68 in
Thickness 0.075 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Ring
Conductor Size 4 AWG
Insulation Material Non-Insulated
Overall Length 1.34 in
