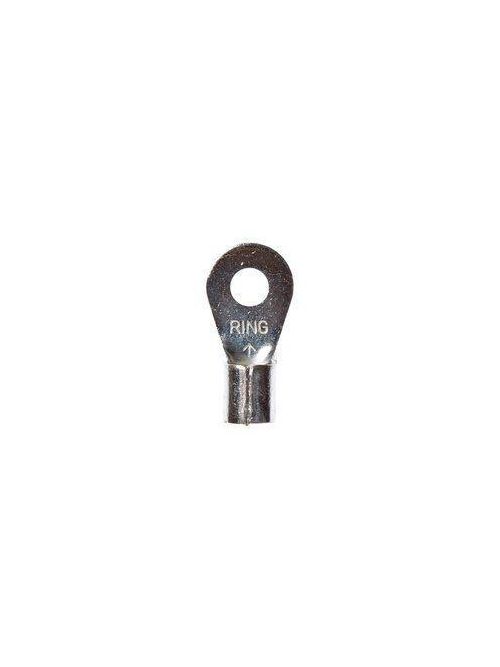

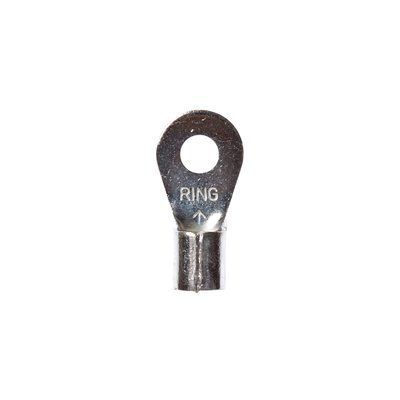

3M M8-10R/SX 10/Bottle Non-Insulated Ring
Product image thumbnail 0
Product image thumbnail 1
Usually ships within 8 to 12 Days
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M8-10R/SX
North Coast Part # 673746


  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire size 8 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 10/carton, 100/case


  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 8 AWG
  • Maximum Operating Temperature (Celsius): 175 Degree Celsius
  • Minimum Conductor Size: 8 AWG
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.93 mm
  • Product Color: Metal
  • Terminal Type: Ring


UPC 05112858693
GTiN 00051128586938
Type Ring
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 8 AWG
Sub Brand Scotchlok
Width 0.47 in
Color Metal
Thickness 0.05 in
Barrel Type Brazed
Material Plastic
Terminal Style Standard
Terminal Type Ring
Product Type Connector
Conductor Size 8 AWG
Insulation Material Non-Insulated
Max Operating Temperature 175 C
