3M M8-14R/SX 10/Bottle Non-Insulated Ring
$2.56/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M8-14R/SX
North Coast Part # 673747

Overview

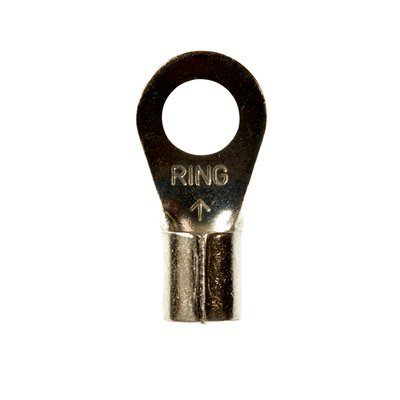

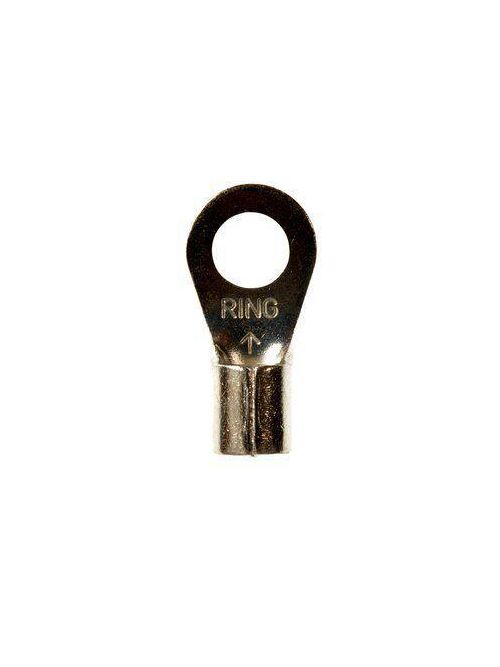

3M™ Scotchlok™ Small Ring Tongue Terminal ensures an optimum fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel has a beveled mouth that guides the wire into position, and it withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Standard Small Ring Tongue Terminal has a non-insulated, silver brazed-seam barrel with a beveled mouth that guides the wire into position and withstands crimping pressures or operating stresses. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire size 8 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 100/carton, 500/case

Specifications

  • 3M ID: 80611458391
  • Agency Approvals: UL and CSA
  • Barrel Style: Brazed
  • Brand: Scotchlok
  • Clearance (C): 0.40 Inch
  • Color: Metal
  • Conductor Size: 8 AWG
  • Conductor Sizes: 8 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.72 Inch
  • Insulation Material: Non-Insulated
  • Material: ETP Copper
  • Packaging: 10 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: 1/4 Inch
  • Terminal Style: Standard
  • Terminal Type: Ring
  • Thickness: 0.05 Inch
  • Thickness (Metric): 1.27 mm
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.47 Inch
  • Width (Metric): 11.938 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858694
GTiN 00051128586945
Type Ring
Family Brand Name 3M
Terminal Size 8 AWG
Sub Brand Scotchlok
Width 0.47 in
Color Metal
Thickness 0.05 in
Barrel Type Brazed
Material ETP Copper
Terminal Style Standard
Terminal Type Ring
Conductor Size 8 AWG
Insulation Material Non-Insulated
