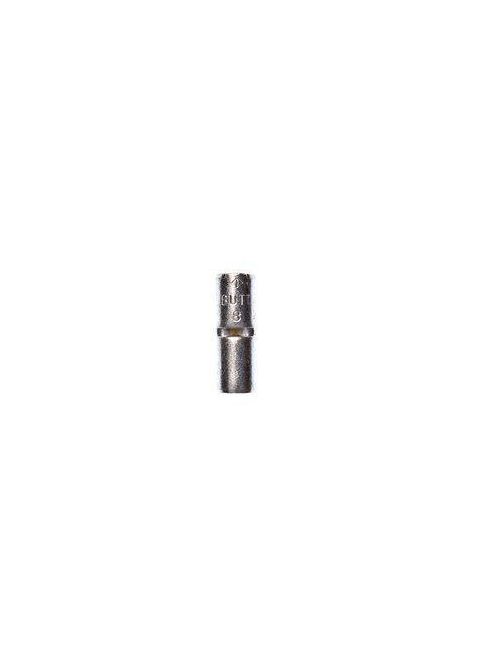

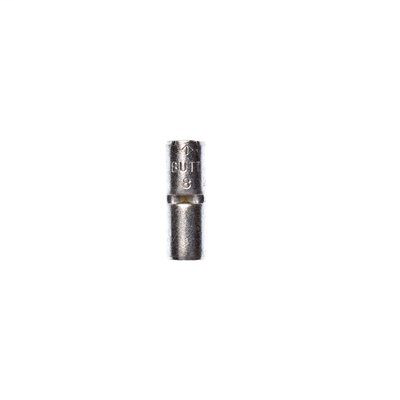

3M Industrial Safety M8BCX 10/Bottle Non-Insulated Butt Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$2.66/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # M8BCX
North Coast Part # 673748

Features

  • Non-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
  • Beveled mouth offers easy insertion of wires
  • Built-in wire stop for correct positioning
  • Accommodates wire size 8 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals

Specifications

  • Barrel Inside Diameter: 0.175 Inch
  • Barrel Length (Imperial): 0.38 Inch
  • Barrel Style: Brazed
  • Body Material: Copper Alloy
  • Conductor Size: 8 AWG
  • Conductor Sizes: 8 AWG
  • Connector Type: Butt
  • CSA File Number: LR22190
  • Insulation Material: Non-Insulated
  • Material: ETP Copper
  • Maximum Conductor Size: 8 AWG
  • Minimum Conductor Size: 8 AWG
  • Minimum Order Quantity: 10
  • Overall Length (Imperial): 0.81 in
  • Overall Length (Metric): 20.574 mm
  • Product Color: Metal
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Terminal Style: Standard
  • Terminal Type: Butt Connectors
  • UL File Number: E23438

Categories

Overview

UPC 05112858727
Item Long Description 3M Scotchlok Butt Connector ensures an ideal fit while offering reliable and safe performance. The non-insulated, brazed-seam barrel with a beveled mouth that guides the wire into position and withstands a maximum temperature of 347 degrees F (175 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128587270
Type Butt
Family Brand Name Scotchlok
Terminal Size 8 AWG
Sub Brand Scotchlok
Length 0.81 in
Thickness 0.05 in
Barrel Type Brazed
Terminal Style Standard
Terminal Type Butt
Conductor Size 8 AWG
Insulation Material Non-Insulated
Barrel Length 0.38 in
Color Metal
Overall Length 0.81 in
