3M Industrial Safety MH10-10FLX 25/Bottle Locking Fork Heat Shrink
$2.35/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH10-10FLX
North Coast Part # 213045

Overview

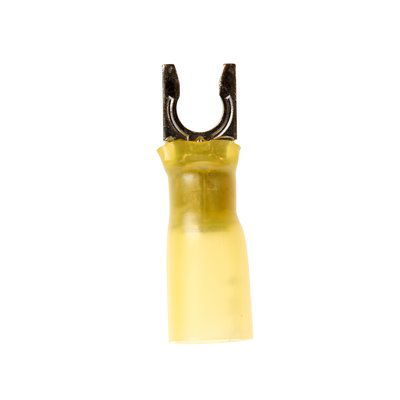

3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.

3M™ Scotchlok™ Heat Shrink Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.

  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Spring-like tongue firmly fits around the stud
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Specifications

  • 3M ID: 80611465370
  • Agency Approvals: UL and CSA
  • Barrel Length: 0.80 Inch
  • Barrel Style: Brazed
  • Brand: Scotchlok™
  • Clearance (C): 0.16 Inch
  • Color: Yellow
  • Conductor Size: 12 - 10 AWG
  • Conductor Sizes: 12 - 10 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.80 Inch
  • Insulation Material: Heat Shrink
  • Length: 1 Inch
  • Length (Metric): 25.4 mm
  • Material: Plastic
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Maximum Operating Temperature (Fahrenheit): 221 Degree Fahrenheit
  • Maximum Recommended Voltage Rating: 600 V
  • Maximum Wire Gauge: 10 AWG
  • Minimum Wire Gauge: 12 AWG
  • Packaging: 25 per bottle
  • RoHS 2011/65/EU Compliant: Yes
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Locking
  • Terminal Type: Fork
  • Thickness: 0.04 Inch
  • Thickness (Metric): 1.01 mm
  • Trademark: Scotchlok
  • UL File Number: E23438
  • Width: 0.32 Inch
  • Width (Metric): 8.12 mm

Legal Disclaimer

  • Manufacturing Origin: USA
  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Overview

UPC 05112858891
GTiN 00051128588918
Length 1 in
Width 0.32 in
Color Yellow
Type Locking, Heat Shrink
Thickness 0.04 in
Barrel Type Brazed
Material Plastic
Stud Size #10
Terminal Style Locking
Terminal Type Fork
Conductor Size 12-10 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 12 - 10 AWG
Max Operating Temperature 221 degrees F
Barrel Length 0.80 in
Sub Brand Scotchlok
