3M MH10-10RX MH10-10RX RING HEATSH
Product image thumbnail 0
Product image thumbnail 1
$1.72/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH10-10RX
North Coast Part # 673749

Features

  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Standard-style ring tongue fits around the stud
  • Stud size #10
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465362
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Yellow

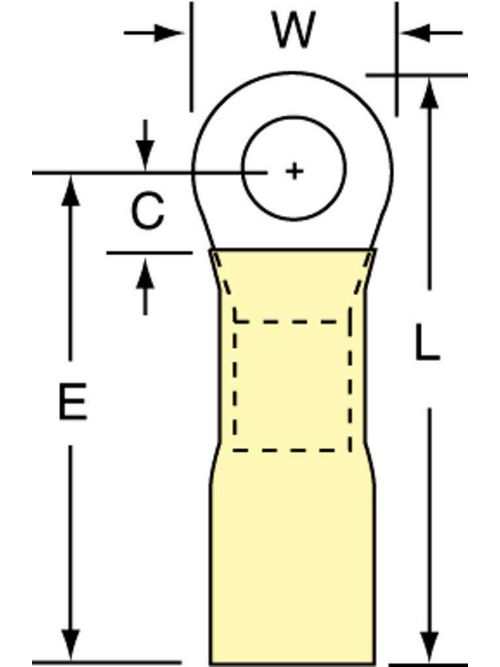

  • Connection Width (Imperial): 0.19 in
  • Connection Width (Metric): 4.826 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 1.1 in
  • Overall Length (Metric): 27.94 mm
  • Overall Width (Imperial): 0.38 in
  • Overall Width (Metric): 9.65 mm
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05112858890
GTiN 00051128588901
Length 1.1 in
Width 0.38 in
Color Yellow
Type Standard, Heat Shrink
Thickness 0.04 in
Barrel Type Brazed
Material Plastic
Stud Size #10
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 12 - 10 AWG
Max Operating Temperature 105 C
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 1.1 in
