3M MH10-14RX MH10-14RX RING HEATSH

$1.72/ea

Usually ships within 8 to 12 Days

Adding...

Already a Customer? Log in to view your pricing

Features

Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
3M™ Scotchlok™ Color-Coded Heat Shrink Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
Standard-style ring tongue fits around the stud
Stud size 1/4 in
Accommodates wire sizes 12 to 10 AWG
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
25/carton, 125/case

The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

UPC	05112858892
GTiN	00051128588925

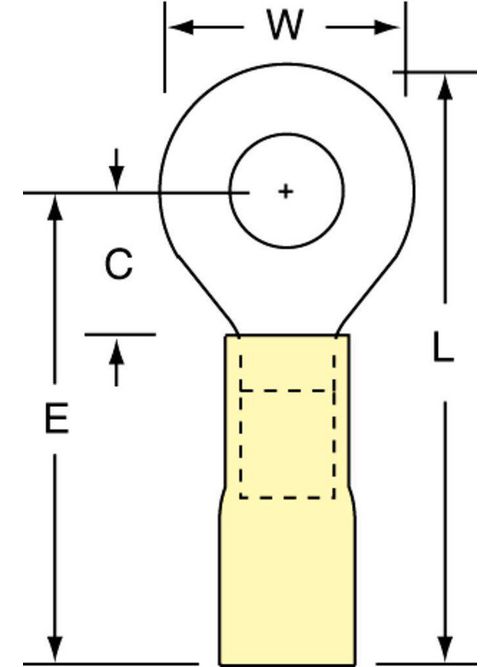

Length	1.2 in
Finish	Tin Plated
Width	0.59 in
Color	Yellow
Type	Short Sleeve, Standard, Heat Shrink
Thickness	0.04 in
Barrel Type	Brazed
Material	Copper
Stud Size	1/4 in
Terminal Style	Standard
Terminal Type	Ring
Conductor Size	12-10 AWG
Family Brand Name	3M
Insulation Material	Heat Shrink
Terminal Size	12 - 10 AWG
Sub Brand	Scotchlok
Max Operating Temperature	105 C
Overall Length	1.2 in
