3M MH10-38RX 25/Bottle Heatshrink Ring
Product image thumbnail 0
Product image thumbnail 1
$1.72/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH10-38RX
North Coast Part # 219032

Features

  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

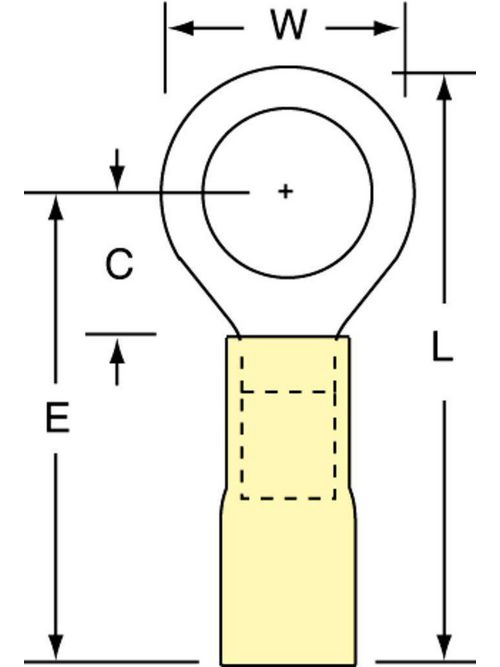

Specifications

  • Color Family: Yellow
  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 1.2 in
  • Overall Length (Metric): 30.48 mm
  • Overall Width (Imperial): 0.59 in
  • Overall Width (Metric): 14.98 mm
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05112858894
GTiN 00051128588949
Length 1.2 in
Finish Tin Plated
Width 0.59 in
Color Yellow
Type Short Sleeve, Standard, Heat Shrink
Thickness 0.04 in
Barrel Type Brazed
Material Copper
Stud Size 3/8 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Max Operating Temperature 105 C
Overall Length 1.2 in
