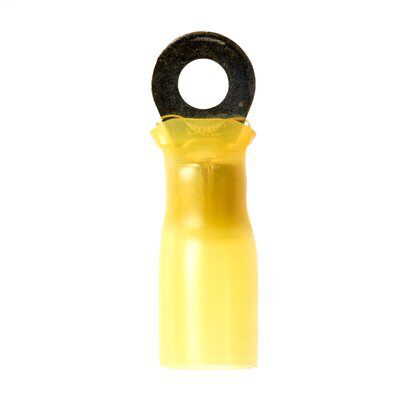

3M Industrial Safety MH10-8RX 25/Bottle Ring Heat Shrink
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.77/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH10-8RX
North Coast Part # 673744

Features

  • Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Stud size #8
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Specifications

  • Color Family: Yellow
  • Connection Type: Crimp

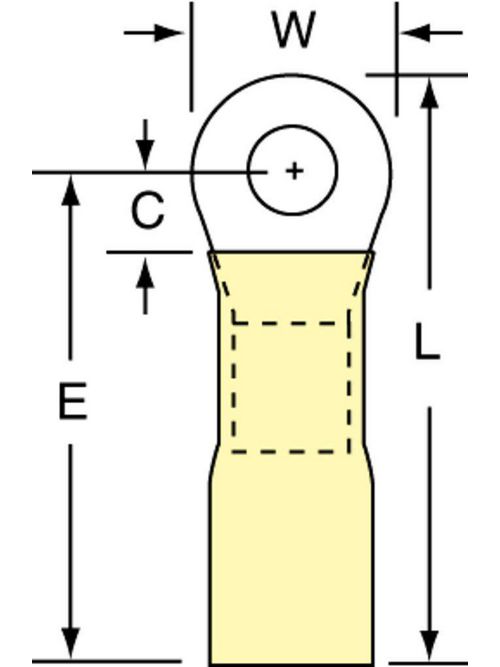

  • Connection Width (Imperial): 0.164 in
  • Connection Width (Metric): 4.166 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 10 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 1.1 in
  • Overall Length (Metric): 27.94 mm
  • Overall Width (Imperial): 0.38 in
  • Overall Width (Metric): 9.65 mm
  • Product Color: Yellow
  • Terminal Type: Ring

Overview

UPC 05112858888
Item Long Description 3M Scotchlok Color-Coded Heat Shrink Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00051128588888
Length 1.1 in
Width 0.38 in
Type Standard, Heat Shrink
Thickness 0.04 in
Barrel Type Brazed
Material Heat Shrink
Stud Size #8
Terminal Style Standard
Terminal Type Ring
Conductor Size 12-10 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 12 - 10 AWG
Sub Brand Scotchlok
Color Yellow
Max Operating Temperature 105 C
Overall Length 1.1 in
