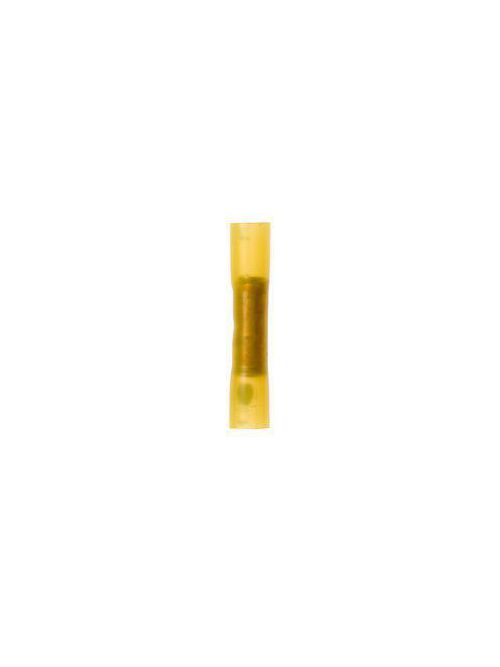

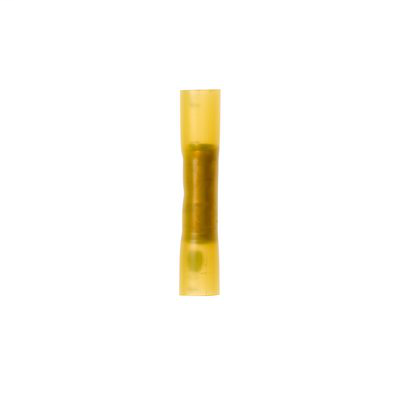

3M MH10BCX MH10BCX HEATSHRINK BUTT
$2.79/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH10BCX
North Coast Part # 218244

Features

  • Seamless barrel uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Butt Connector ensures an ideal fit with great performance. The seamless barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Built-in wire stop for correct positioning
  • 3M™ Scotchlok™ Heat Shrink Butt Connector is color-coded for quick and easy identification of the wire size required. This versatile connector has a seamless barrel that is covered by see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Accommodates wire sizes 12 to 10 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 25/carton, 125/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611467525
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Yellow
  • Conductor Size: 12 - 10 AWG
  • Connector Type: Butt
  • Insulation Material: Heat Shrink
  • Maximum Conductor Size: 10 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 12 AWG
  • Overall Length (Imperial): 1.5 in
  • Overall Length (Metric): 38.1 mm
  • Product Color: Yellow

Overview

UPC 05112859093
GTiN 00051128590935
Length 1.5 in
Finish Electro-Tin Plated
Color Yellow
Type Butt
Thickness 0.031 in
Barrel Type Seamless
Material Heat Shrink
Terminal Style Heat Shrink
Terminal Type Butt Connectors
Product Type Connector
Conductor Size 12-10 AWG
Connection Type Butt
Temperature Rating 105 C
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 12 - 10 AWG
Contact Material Copper
Max Operating Temperature 105 C
Overall Length 1-1/2 in
Barrel Length 0.38 in
Sub Brand Scotchlok
Voltage null
