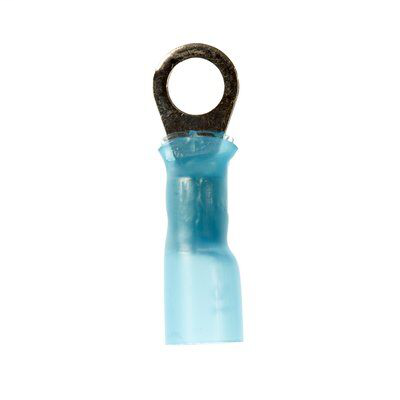

3M MH14-10R/LX MH14-10RLX RING HEA

Features

• Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
• When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
• 3M™ Scotchlok™ Color-Coded Heat Shrink Large Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
• Standard-style ring tongue fits around the stud
• Stud size #10
• Accommodates wire sizes 16 to 14 AWG
• Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
• Withstands a maximum temperature of 221 degrees F (105 degrees C)
• 600V-rated for building wire and 1000V for signs, fixtures or luminaires
• UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
• 25/carton, 125/case

Legal Disclaimer

• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

• 3M ID: 80611465479
• Manufacturing Origin: USA
• Brand: Scotchlok™
• Color Family: Blue
• Connection Width (Imperial): 0.19 in
• Connection Width (Metric): 4.826 mm
• Maximum Operating Temperature (Celsius): 105 Degree Celsius
• Overall Length (Imperial): 1 in
• Overall Length (Metric): 25.4 mm
• Overall Width (Imperial): 0.31 in
• Overall Width (Metric): 7.87 mm
• Product Color: Blue
• Terminal Type: Ring
