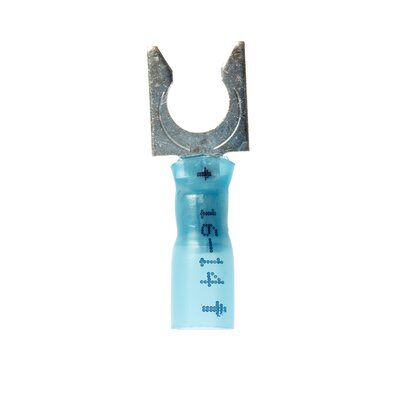

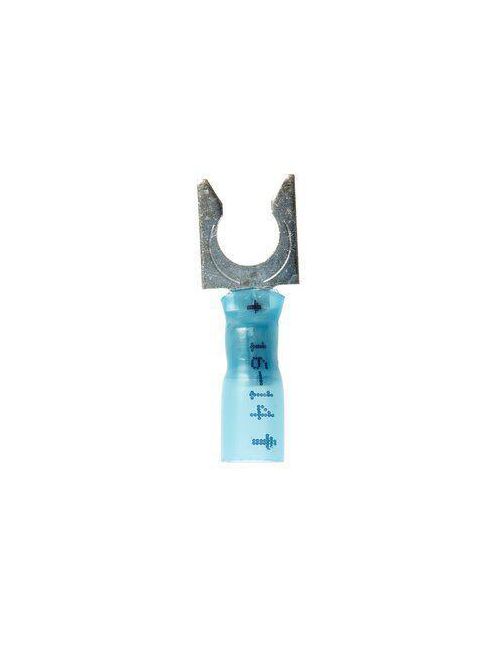

3M MH14-14FLX MH14-14FLX LOCK FORK
$2.06/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH14-14FLX
North Coast Part # 673739

Features

  • Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Spring-like tongue firmly fits around the stud
  • 3M™ Scotchlok™ Heat Shrink Locking Fork Terminal is color-coded for quick and easy identification of the wire size required. This versatile terminal has a brazed-seam barrel that is covered by a see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Stud size 1/4 in
  • Accommodates wire sizes 16 to 14 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465503
  • Agency Approvals: UL and CSA
  • Brand: Scotchlok™
  • Clearance (C): 0.27 Inch
  • Conductor Size: 16 - 14 AWG
  • Dimension E: 0.85 Inch
  • Fork Type: Locking
  • Insulation Material: Heat Shrink
  • Manufacturing Origin: USA
  • Minimum Order Quantity: 25
  • Overall Length (Imperial): 1.1 in
  • Overall Width (Imperial): 0.43 in
  • Stud Size: 1/4 Inch
  • Terminal Style: Locking
  • Terminal Type: Fork

Overview

UPC 05112858904
GTiN 00051128589045
Type Fork
Material Heat Shrink
Stud Size 1/4 Inch
Family Brand Name Scotchlok
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Length 1.1 in
Width 0.43 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 14 AWG
Insulation Material Heat Shrink
Overall Length 1.1 in
