3M MH14-14R/SX MH14-14R/SX RING HE
Product image thumbnail 0
Product image thumbnail 1
$1.72/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH14-14R/SX
North Coast Part # 673740

Features

  • Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Stud size 1/4 in
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

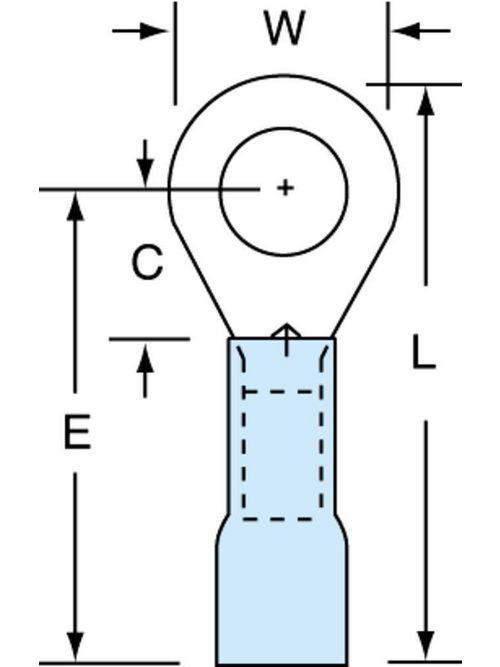

Specifications

  • Color Family: Blue
  • Connection Width (Imperial): 0.25 in
  • Connection Width (Metric): 6.35 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • Overall Length (Imperial): 1.1 in
  • Overall Length (Metric): 27.94 mm
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.93 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

UPC 05112858903
GTiN 00051128589038
Length 1.1 in
Finish Tin Plated
Width 0.47 in
Color Blue
Type Standard, Heat Shrink
Thickness 0.03 in
Barrel Type Brazed
Material Copper
Stud Size 1/4 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 16-14 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 16 - 14 AWG
Max Operating Temperature 105 C
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 1.1 in
