3M MH14-38RX MH14-38RX RING HEATS
$2.06/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH14-38RX
North Coast Part # 673732

Features

  • Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt

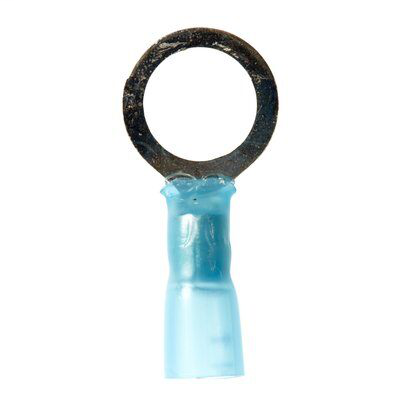

  • 3M™ Scotchlok™ Color-Coded Heat Shrink Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Standard-style ring tongue fits around the stud
  • Stud size 3/8 in
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465511
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Blue

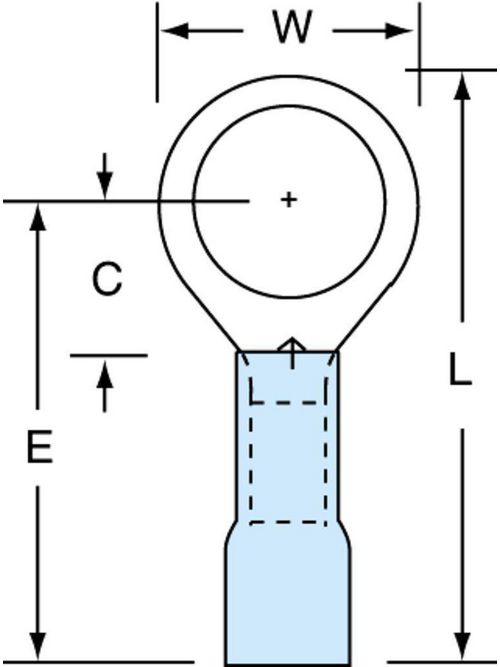

  • Connection Width (Imperial): 0.375 in
  • Connection Width (Metric): 9.525 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 1.1 in
  • Overall Length (Metric): 27.94 mm
  • Overall Width (Imperial): 0.56 in
  • Overall Width (Metric): 14.22 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

UPC 05112858905
GTiN 00051128589052
Length 1.1 in
Finish Tin Plated
Width 0.56 in
Color Blue
Type Short Sleeve, Standard, Heat Shrink
Thickness 0.03 in
Barrel Type Brazed
Material Copper
Stud Size 3/8 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 16-14 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 16 - 14 AWG
Max Operating Temperature 105 C
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 1.1 in
