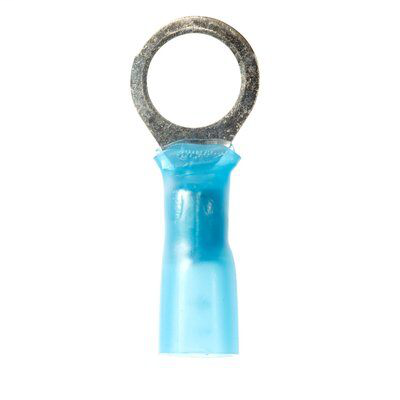

3M MH14-516R/SX MH14-516R/SX RING
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$1.82/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH14-516R/SX
North Coast Part # 673733

Features

  • Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Stud size 5/16 in
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance

Specifications

  • Color Family: Blue
  • Connection Type: Crimp
  • Connection Width (Imperial): 0.315 in
  • Connection Width (Metric): 8 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG

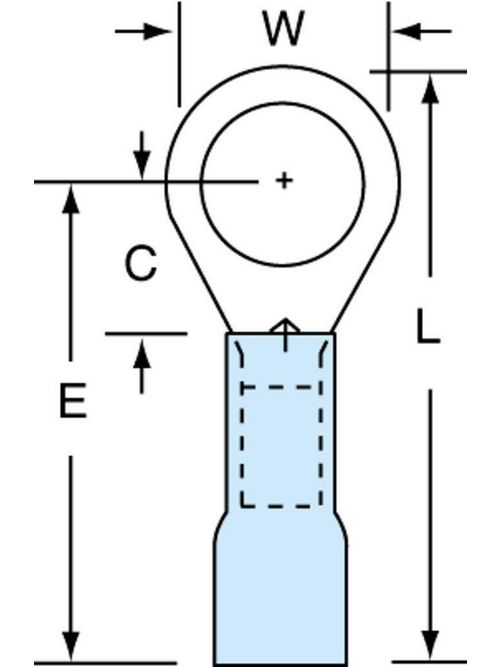

  • Overall Length (Imperial): 1.1 in
  • Overall Length (Metric): 27.94 mm
  • Overall Width (Imperial): 0.47 in
  • Overall Width (Metric): 11.93 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

GTiN 00051128589069
Length 1.1 Inch
Width 0.47 in
Color Blue
Type Heat Shrink
Thickness 0.03 in
Barrel Type Brazed
Material Plastic
Stud Size 5/16 in
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 - 14 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 16 - 14 AWG
Max Operating Temperature 105 C
Barrel Length 0.25 in
Sub Brand Scotchlok
Product UPC 05112858906
Overall Length 1.1 in
