3M Industrial Safety MH14-6R/LX 25/Bottle Ring Heat Shrink
Product image thumbnail 0
Product image thumbnail 1
$1.32/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH14-6R/LX
North Coast Part # 673734

Features

  • Brazed-seam terminal uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Large Ring Tongue Terminal ensures an ideal fit and offers reliable performance. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands temperatures of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Stud size #6
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465446
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Blue

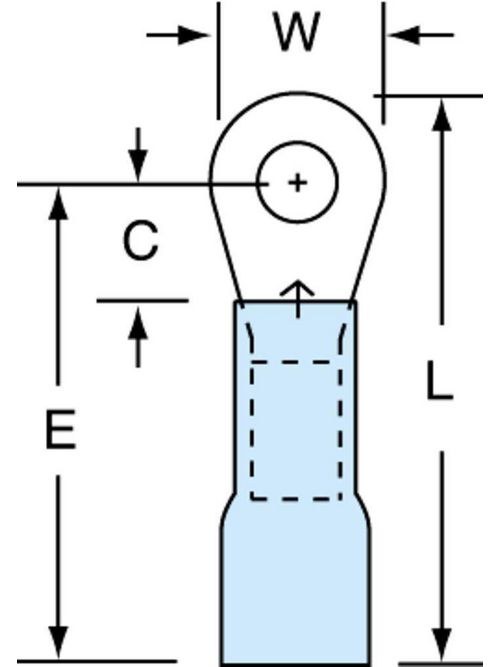

  • Connection Width (Imperial): 0.138 in
  • Connection Width (Metric): 3.5 mm
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Overall Length (Imperial): 1 in
  • Overall Length (Metric): 25.4 mm
  • Overall Width (Imperial): 0.31 in
  • Overall Width (Metric): 7.87 mm
  • Product Color: Blue
  • Terminal Type: Ring

Overview

UPC 05112858898
GTiN 00051128588987
Length 1 in
Width 0.31 in
Type Ring
Thickness 0.03 in
Barrel Type Brazed
Material Heat Shrink
Stud Size 6
Terminal Style Standard
Terminal Type Ring
Conductor Size 16 To 14 AWG
Family Brand Name Scotchlok
Insulation Material Heat Shrink
Terminal Size 16 - 14 AWG
Sub Brand Scotchlok
Color Blue
Max Operating Temperature 105 C
Overall Length 1 in
