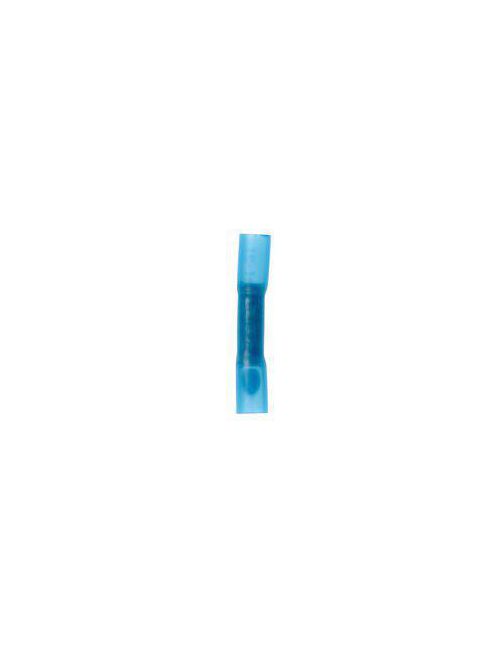

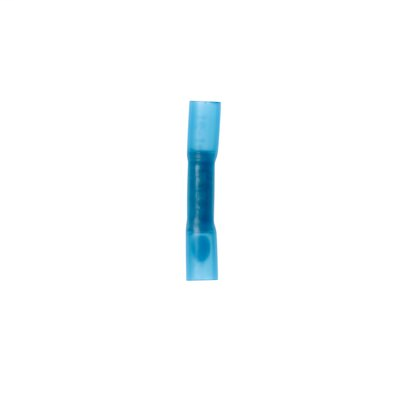

3M MH14BCX MH14BCX BUTT CONNECTOR H
Product image thumbnail 0
Product image thumbnail 1
$1.72/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH14BCX
North Coast Part # 18043

Features

  • Seamless barrel uses blue pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • 3M™ Scotchlok™ Color-Coded Heat Shrink Butt Connector ensures an ideal fit with great performance. The seamless barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
  • Built-in wire stop for correct positioning
  • 3M™ Scotchlok™ Heat Shrink Butt Connector is color-coded for quick and easy identification of the wire size required. This versatile connector has a seamless barrel that is covered by see-through, pre-insulated transparent tubing to provide seal resistance to water, salt and other contaminants when crimped and shrunk. The heat shrink tubing offers better pullout strength and strain relief when shrunk. UL Listed, CSA Certified and RoHS 2011/65/EU Compliant.
  • Accommodates wire sizes 16 to 14 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant

Legal Disclaimer

  • The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
  • Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.

Specifications

  • 3M ID: 80611465438
  • Manufacturing Origin: USA
  • Brand: Scotchlok™
  • Color Family: Blue
  • Conductor Size: 16 - 14 AWG
  • Connector Type: Butt
  • Insulation Material: Heat Shrink
  • Maximum Conductor Size: 14 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 16 AWG
  • National Stock Number: 5940014322574, 5940015489933
  • Overall Length (Imperial): 1.3 in
  • Overall Length (Metric): 33.02 mm
  • Product Color: Blue

Overview

UPC 05112858897
GTiN 00051128588970
Length 1.3 in
Color Blue
Type Butt
Thickness 0.031 in
Barrel Type Seamless
Material Heat Shrink
Terminal Style Heat Shrink
Terminal Type Butt
Conductor Size 16-14 AWG
Family Brand Name 3M
Insulation Material Heat Shrink
Terminal Size 16 - 14 AWG
Barrel Length 0.30 in
Sub Brand Scotchlok
Max Operating Temperature 105 C
Overall Length 1.3 in
