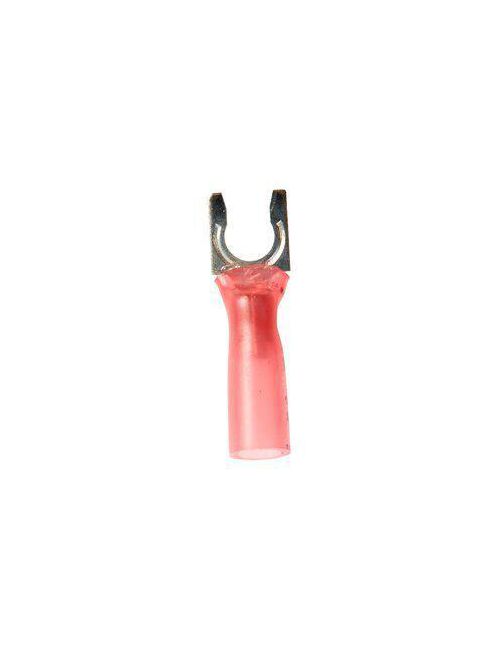

3M MH18-10FLX 25/Bottle Heatshrink Locking Fork
Product image thumbnail 0
Product image thumbnail 1
$1.32/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH18-10FLX
North Coast Part # 673730

Features

  • Brazed-seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Spring-like tongue firmly fits around the stud
  • Stud size #10
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

Specifications

  • Barrel Inside Diameter: 0.070 Inch
  • Barrel Style: Brazed
  • Conductor Size: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.76 Inch
  • Fork Type: Locking
  • Insulation Material: Heat Shrink
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Minimum Order Quantity: 25
  • Overall Length (Imperial): 1 in
  • Overall Width (Imperial): 0.32 in
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Size: #10
  • Terminal Style: Locking
  • Terminal Type: Fork
  • UL File Number: E23438

Overview

UPC 05112858915
GTiN 00051128589151
Type Fork
Material Heat Shrink
Stud Size 10
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 1 in
Width 0.32 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 22 To 18 AWG
Insulation Material Heat Shrink
Overall Length 1 in
