3M MH18-6FLK MH18-6FLK LOCK FORK BR
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
$0.54/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH18-6FLK
North Coast Part # 1829798

Features

  • Brazed-seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Spring-like tongue firmly fits around the stud
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Electrolytic copper construction offers good conductivity
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • 250/case

Specifications

  • Barrel Inside Diameter: 0.07 Inch
  • Barrel Length (Imperial): 0.25 Inch
  • Barrel Style: Brazed
  • Conductor Size: 22 - 18 AWG
  • CSA File Number: LR22190
  • Dimension E: 0.76 Inch
  • Fork Type: Locking
  • Insulation Material: Heat Shrink
  • Maximum Conductor Size: 18 AWG
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 1 in
  • Overall Width (Imperial): 0.25 in
  • Product Key: HEAT HEAT SHRINK TERMINALS FKD
  • RoHS EU Comments: RoHS 2011/65/EU compliant without exemption
  • Stud Diameter (Imperial): 0.138 in
  • Stud Diameter (Metric): 3.505 mm
  • Stud Size: #6
  • Terminal Style: Locking
  • Terminal Type: Fork

Overview

UPC 05400706347

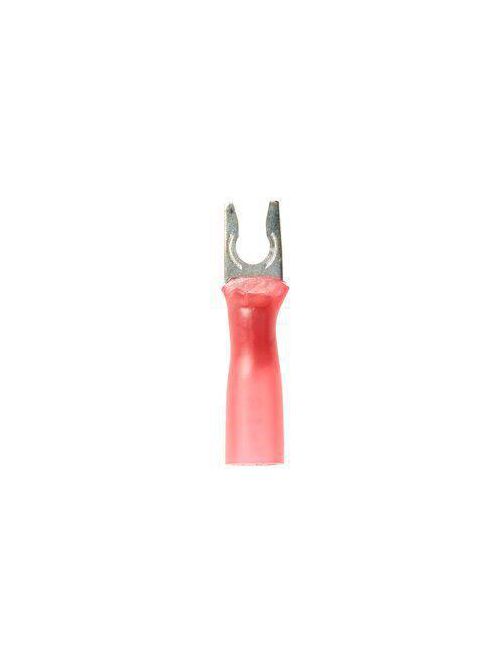

Item Long Description 3M Scotchlok Color-Coded Heat Shrink Locking Fork terminal has a spring-like tongue to securely lock around the stud. The brazed-seam barrel is covered by an adhesive-lined polyolefin tubing to offer moisture-seal protection. It withstands a maximum temperature of 221 degrees F (105 degrees C). Electrolytic copper construction offers good conductivity and a tin-plated finish resists corrosion.
GTiN 00054007063476
Type Fork
Material Heat Shrink
Stud Size 6
Family Brand Name Scotchlok
Terminal Size 22 - 18 AWG
Sub Brand Scotchlok
Length 1 in
Width 0.25 in
Thickness 0.03 in
Barrel Type Brazed
Terminal Style Locking
Terminal Type Fork
Conductor Size 22 To 18 AWG
Insulation Material Heat Shrink
Barrel Length 0.25 in
Overall Length 1 in
