3M Industrial Safety MH18-6R/LX 25/Bottle Ring Heat Shrink
Product image thumbnail 0
Product image thumbnail 1
$1.32/ea
Usually ships within 8 to 12 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer 3M
Mfg Catalog # MH18-6R/LX
North Coast Part # 673728

Features

  • Brazed-seam terminal uses red pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
  • When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
  • Standard-style ring tongue fits around the stud
  • Stud size #6
  • Accommodates wire sizes 22 to 18 AWG
  • Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
  • Withstands a maximum temperature of 221 degrees F (105 degrees C)
  • 600V-rated for building wire and 1000V for signs, fixtures or luminaires
  • UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
  • 25/carton, 125/case

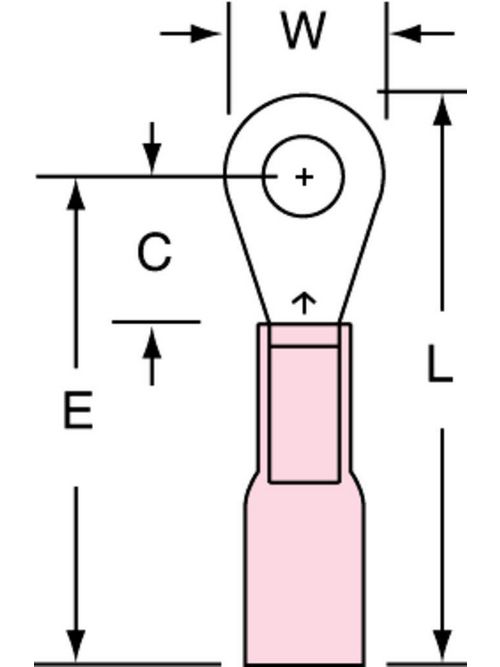

Specifications

  • Color Family: Red
  • Connection Width (Imperial): 0.138 in
  • Connection Width (Metric): 3.5 mm
  • Disconnect Type: Non Pertinent
  • Maximum Conductor Size: 18 AWG
  • Maximum Operating Temperature (Celsius): 105 Degree Celsius
  • Minimum Conductor Size: 22 AWG
  • Overall Length (Imperial): 1 in
  • Overall Length (Metric): 25.4 mm
  • Overall Width (Imperial): 0.31 in
  • Overall Width (Metric): 7.87 mm
  • Product Color: Red
  • Terminal Type: Ring

Overview

UPC 05112858910
GTiN 00051128589106
Length 1 in
Width 0.31 in
Color Red
Type Ring
Thickness 0.03 in
Barrel Type Brazed
Material Plastic
Stud Size 6
Terminal Style Standard
Terminal Type Ring
Conductor Size 22-18 AWG
Family Brand Name Scotchlok
Insulation Material Heat Shrink
Terminal Size 22 - 18 AWG
Max Operating Temperature 105 C
Barrel Length 0.25 in
Sub Brand Scotchlok
Overall Length 1 in
